| Place of Origin: | Jinan city,Shandong province,China |
| Brand Name: | ZW |
| Certification: | ISO9001:2008 |
| Model Number: | Diatemer 20mm-150mm |
| Minimum Order Quantity: | One ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | big bags , steel drum |
| Delivery Time: | 10-30 days after order confirmation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | Annual output 50000 tons |
| Manufacturer: | Jinan Zhongwei | Coutry Of Origin: | China |
|---|---|---|---|
| HS Code: | 7326110000 | Production Line: | Hot Rolling , Air Hammer Forging |
| Raw Material Supplier: | China Large Steel Group-Laiwu Steel | Forged Grinding Balls Application: | Grinding Process In Various Ball Mill |
| Application Fields: | Mining , Cement Plant , Building Material Industry | Quality Guarantee: | No Steel Scrap,100% Real Material |
| Breakage: | Less Than 0.5% | Samples Support: | Free Samples |
| Port Of Loading: | Qingdao Port,China | Leading Time: | According To The Contract |
| Inquiry: | Info@zwgrindingball.com | ||
| Highlight: | precision steel balls,forged steel grinding balls |
||

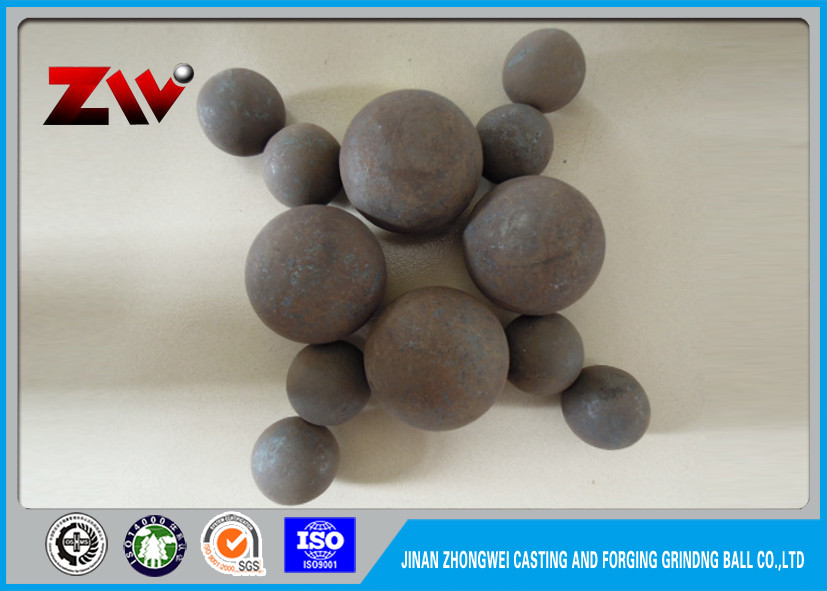

Forged steel Balls are made from high carbon steel bars with the proper alloying elements.
Bars are heated to forging temperatures and formed into nearly perfect spheres.
Then, balls are heat-treated to provide the necessary wear and impact resistance properties.
APPLIED FIELD:
MINES,CEMENT PLANTS,POWER STATIONS,CHEMICAL INDUSTRIES
Weight of Forged Grinding Ball
Norminal Diameter | Diametrical Tolerance(mm) | Approx Weight of Single Ball(kg) | Average Number of One Ton |
25mm/1'' | +1.5,-0.5 | 0.064 | 15625 |
30mm/1.25'' | +1.5,-0.5 | 0.11 | 9090 |
40mm/1.5'' | +2.0,-1.0 | 0.26 | 3846 |
50mm/2'' | +2.0,-1.0 | 0.51 | 1961 |
60mm/2.5'' | +3.0,-2.0 | 0.89 | 1124 |
70mm/2.75'' | +3.0,-2.0 | 1.4 | 714 |
80mm/3.25'' | +3.0,-2.0 | 2.1 | 476 |
90mm/3.5'' | +3.0,-2.0 | 3 | 333 |
100mm/4'' | +4.0,-3.0 | 4.1 | 244 |
110mm/4.5'' | +4.0,-3.0 | 5.47 | 283 |
120mm/4.75 | +4.0,-3.0 | 7.1 | 141 |
130mm/5'' | +4.0,-3.0 | 9.02 | 111 |
Type of forged steel balls
TYPE | Name | C | Mn | Si | Cr | S | P | V |
ZW-1 | 50Mn | 0.48-0.56 | 0.70-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
|
ZW-2 | 60Mn | 0.57-0.65 | 0.7-1.0 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
|
ZW-3 | 65Mn | 0.60-0.70 | 0.9-1.2 | 0.17-0.37 | ≤0.25 | ≤0.035 | ≤0.035 |
|
ZW-4 | B2 | 0.7-0.85 | 0.7-0.8 | 0.17-0.37 | 0.2-0.7 | ≤0.03 | ≤0.03 |
|
ZW-5 | 75SiMn | 0.7-0.90 | 0.7-1.2 | 0.4-0.8 | ≤0.25 | ≤0.03 | ≤0.03 |
|
ZW-6 | Wear- | 0.5-0.65 | 0.4-1.0 | 1.4-1.8 | 0.9-1.2 | ≤0.03 | ≤0.03 | 0.1-0.2 |
Testing Method and Inspection Rules
1. Impact Test
2. Rockwell Hardness Test Specimen Preparation
3. Chemical Composition Inspection
4. Surface Hardness Inspection
5. Internal Quality Inspection
Port of loading:Qingdao Port,China
Delivery time : Normally 2-3 weeks after down payment received.
Partial shippment allowed,
FAQ
Forged Steel Balls Package :
For Container Bag, Net weight 1000Kgs ,Gross Weight 1002KGS ,Measurement 0.4CBM
For Steel Drums ,Net weight 850-950Kgs ,Gross Weight 865-965KGS ,Measurement 0.3CBM
Manufacturer :Jinan Zhongwei
Jinan Zhongwei Grinding Media Plant located in Zhangqiu , Jinan City,Shandong Province , China
Contact Person: Mrs. cherry lee
Tel: +8613793138983
Fax: Jinan Zhongwei Casting And Forgi
Address: Puji Street, Zhangqiu District, Jinan City, Shandong Province,China
Factory Address:Lejia,Puji Town,Zhangqiu Jinan city,Shandong Province,China
