Jinan Zhongwei Casting And Forging Grinding Ball Co.,Ltd

18 Years focus on development and production of grinding media

Casting quality with strength, Forging glory with integrity

Home ProductsGrinding Steel Balls

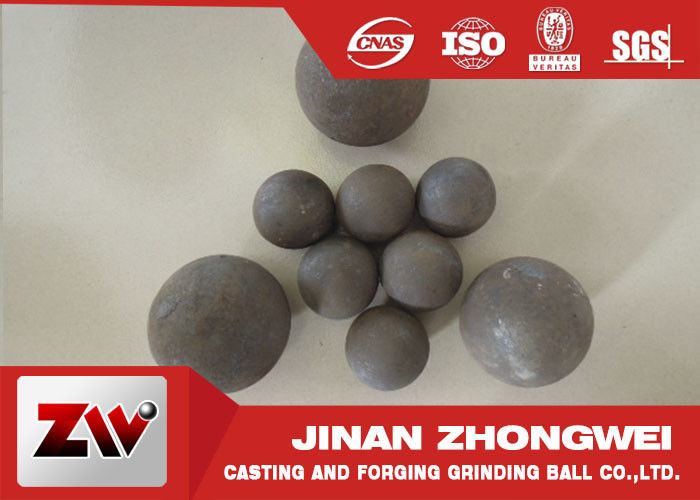

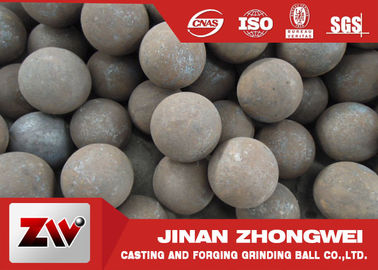

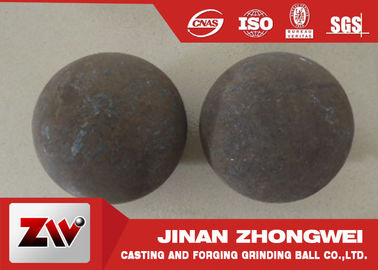

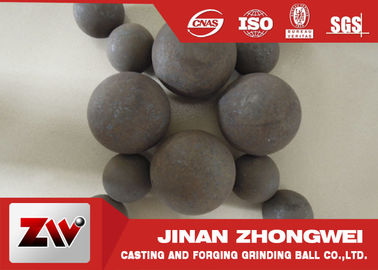

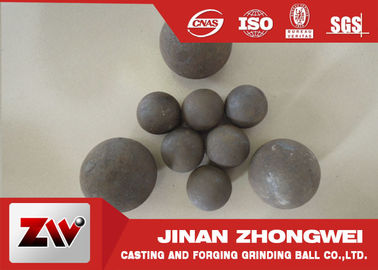

High Impact Toughness forged grinding balls for cooper mining special used

High Impact Toughness forged grinding balls for cooper mining special used

    • High Impact Toughness forged grinding balls for cooper mining special used
    • High Impact Toughness forged grinding balls for cooper mining special used
    • High Impact Toughness forged grinding balls for cooper mining special used
    • High Impact Toughness forged grinding balls for cooper mining special used
    • High Impact Toughness forged grinding balls for cooper mining special used
  • High Impact Toughness forged grinding balls for cooper mining special used

    Product Details:

    Place of Origin: Jinan
    Brand Name: ZW
    Certification: ISO9001 SGS
    Model Number: 45# 60Mn B2 B3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 tonne
    Price: Negotiable
    Packaging Details: Steel drums,container bags
    Delivery Time: 5-8 work days
    Supply Ability: 20000 Tonne per year
    Contact Now
    Detailed Product Description
    Material: Steel Size: Dia20-1500mm
    HRC: 55-65 Breakage: ≤1%
    Application: 1,cement Plant 2,power Station 3,mine 4,chemical Industry Name: ZW Grinding Steel Ball

    2016 hot sale high hardness cooper mining use forging grinding balls



    Type and chemical composition of forged balls


    Name

    Material

    Chemical composition

    Hardness
    C Si Mn S P Cr HRC




    forged ball
    B3 0.58-0.66 1.6-1.9 0.65-0.8 <0.025 <0.025 0.7-0.9 58-63
    B2 0.72-0.85 0.17-0.37 0.7-1.0 <0.04 <0.04 0.4-0.6 58-63
    60Mn 0.55-0.65 0.17-0.37 0.7-1.0 <0.04 <0.04 <0.25 58-62
    45# 0.42-0.50 0.17-0.37 0.5-0.8 <0.035 <0.035 ≤0.25 50-55




    Hardness distribution


    Material
    Dia25mm-Dia50mm

    Dia60mm-Dia90mm

    Dia90mm-Dia125mm


    surface

    core

    surface

    core

    surface

    core
    B3 / / / / 56-63 45-53
    B2 60-65 58-62 58-63 50-55 56-60 40-45
    60Mn 58-63 55-60 58-63 40-45 56-60 30-35
    45# 55-58 45-55 55-58 30-35 50-55 25-30



    Type and chemical composition of cast iron balls


    Name

    Material

    Chemical composition

    Hardness
    C Si Mn S P Cr HRC




    Cast ball

    Special Hi-Cr
    2.0-3.0 <1.0 0.5-2.0 ≤0.06 ≤0.08 >20 58-64

    Special Hi-Cr
    2.0-3.0 <1.0 0.5-2.0 ≤0.06 ≤0.08 >15 58-64

    High-Cr
    2.0-3.2 <1.0 0.5-2.5 ≤0.06 ≤0.08 >10 58-62

    Medium-Cr
    2.0-3.2 <1.0 0.5-2.5 ≤0.06 ≤0.08 ≥5 50-55

    Low-Cr
    2.2-3.4 ≤1.2 0.5-1.5 ≤0.06 ≤0.08 1.0-1.5 42-46



    Hardness distribution


    Material
    Dia25mm-Dia50mm

    Dia60mm-Dia70mm

    Dia80mm-Dia90mm


    surface

    core

    surface

    core

    surface

    core

    Special hi-CR:>20
    60-64 59-63 60-64 58-62 60-64 57-61

    Special hi-CR:>15
    58-62 57-61 58-62 56-60 58-62 50-59

    High Cr:>10
    58-62 57-61 58-62 56-60 58-62 50-59

    Medium Cr:≥5
    50-55 49-54 50-55 48-53 50-55 47-52

    Low Cr:1-1.5
    42-46 41-45 42-46 40-44 42-46 39-43




    Advantages of Jinan Zhongwei Forged Grinding Balls
    1.Electric Furnace as compared to coal
    2.Fair Market Price
    3.Quality guarantee
    4.On time delivery

    High Impact Toughness forged grinding balls for cooper mining special used


    The production process of the forged grinding balls

    1). Raw material:
    All the material is qualified with certificate and made in the Chinese largest steel production enterprise.

    2). Different steel specifications ccording to the clients's requirements.
    Main Steel Material :C45 Steel;60Mn Steel;B2 Steel

    3). Steel Cutting:
    the steel bars should be cut into small pieces according to the size of steel balls required by the order.

    4). Heating:
    we use the electric furnace instead of the traditional coal stove, the biggest advantage is that all the steel bars can accept the most approriate temperature during the heating progress. It affect the hardness and toughness directly.

    5). Hammer forging:
    The raw material is forged to a certain deformation by the air hammer, when the compression ratio increased, the micro-structure become more compact so that the hardness and the toughness can be improved.

    6). Heat treatment:
    Both the water quenching heat treatment production line and our own temperature control technics are important.
    We have mature production technicians responsible for the heat treatment process as we know this process affect the grinding balls performance directly.

    7). Quality Control.
    Raw material test before production
    Hardness test Drop Test Impact Test Core pulling Test after production
    SGS test before delivery

    Certificate: ISO 9001:2008


    Packaging & Shipping

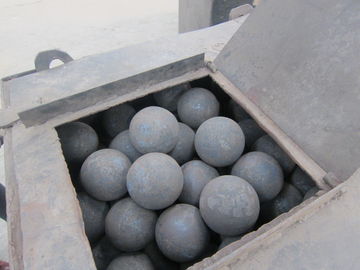

    Packing: Container bags or steel drums or others.
    For Container Bag, Net weight 1000Kgs ,Gross Weight 1002KGS ,Measurement 0.4CBM
    For Steel Drums ,Net weight 850-950Kgs ,Gross Weight 865-965KGS ,Measurement 0.3CBM .

    Shipping and delivery
    Port of loading:Qingdao Port,China

    Delivery time : Normally 2-3 weeks after down payment received.
    Partial shippment allowed


    FAQ
    Payment terms : T/T (30% DP,balance against copy of B/L.; L/C
    Samples : Free samples are provided for test before trial order
    MOQ : 1 Ton

    High Impact Toughness forged grinding balls for cooper mining special used

    Company Profile


    Jinan Zhongwei Casting And Forging Grinding Ball Co.,LTd established in 2000, as a professional grinding media manufacturer, we are devote to development and production wear-resistant steel balls for ball mill. Main products: Forged Steel Ball, Cast Steel Ball (High, Medium, Low Chrome), Casting Cylpebs, Grinding Rods.

    We have obtained ISO 9001:2008 International Quality System Authentication. To ensure the excellent performance of grinding balls, our company have advance quality control and test equipments, and complete quality inspection system.

    Strength casting high quality goods and good faith forging magnificent. Our aim is to insist on the theory of "Quality first, Honesty and Trust Bring Mutual Benefits". We are trying best to supply customers from both at home and abroad with high quality products and satisfactory service.

    For more information about our products ,Pls feel free to contact us.
