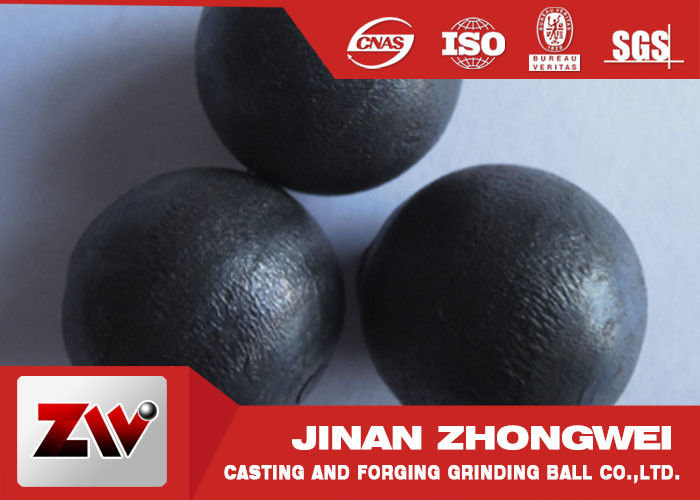

Performance Grinding Balls For Mining / Professional Grinding Media Balls

Performance Grinding Balls For Mining / Professional Grinding Media Balls

    • Performance Grinding Balls For Mining / Professional Grinding Media Balls
    • Performance Grinding Balls For Mining / Professional Grinding Media Balls
    • Performance Grinding Balls For Mining / Professional Grinding Media Balls
    • Performance Grinding Balls For Mining / Professional Grinding Media Balls
  • Performance Grinding Balls For Mining / Professional Grinding Media Balls

    Product Details:

    Place of Origin: CHINA
    Brand Name: ZW
    Certification: ISO9001:2008 SGS
    Model Number: GB/T 17445-2009

    Payment & Shipping Terms:

    Minimum Order Quantity: 10/tons
    Price: Negotiable
    Packaging Details: container bags or steel drums
    Delivery Time: 7-14 days
    Supply Ability: 50000 tons/year
    Contact Now
    Detailed Product Description
    Endurance Test Times: ≥10000 Breakage Guarantee: ≤1%
    Heat Treatment: Air Quenching HRC: 58-64
    Name: Casting Steel Grinding Balls Impact Test: ≥4 AK.j/cm^2
    CR: Cr:1-18 Quality System Authentication: ISO9001:2008/SGS TEST REPORT



    Performance Grinding Balls For Mining / Professional Grinding Media Balls





    Process features of cast iron balls:

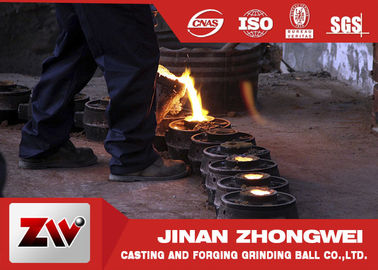

    Moulding process---pouing when the molten iron temoerature reaches 1500 C,using the teoperature difference between moletn iron and the molds.in this way,the ball can achieve internal organization  of grain refinement and be moredense.menanwhile,the carvide is radially arranged .and such carbide is embedded in  the matrix again during  grinding process,forming hatd layer continously,so that the hardness and toughness is maintained to a reasonable range,greatly improving the toughness and hardness of the grinding balls.


    Specifications of our products as follows:

                              Type and Chenical Composition of Cast Balls


           Name



    Material

                           Chemical Composition
             C Si Mn S/P Cr HRC
    Cast ball

    special hi-cr

    2.0-3.2 <1.0 0.5-2.0 <0.06 >18 58-64

    higt-cr


    2.0-3.2 <1.0 0.5-1.5 <0.06 >10 58-62


    medium-cr

    2.0-3.2 <1.0 0.5-1.5 <0.06 ≥5 45-48


    low-cr

    2.2-3.4 ≤1.2 0.5-1.5 ≤0.06 1.0-1.5 42-46






        Physical property of cast iron balls



      Name



    Material

    Impact test

    AK.j/cm^2

    Endurance test times HRC Breakage









    Cast ball





    special hi-cr ≥4 ≥10000 58-64 <1%
    higt-cr ≥3 ≥10000 58-62 <1%
    medium-cr ≥3 ≥8000 45-48 <1%
    low-cr ≥2 ≥8000 42-46 <1%


    5.Package: Steel drums (850kg per drum) or Flexible Container Bags ( 1000kg per bag)

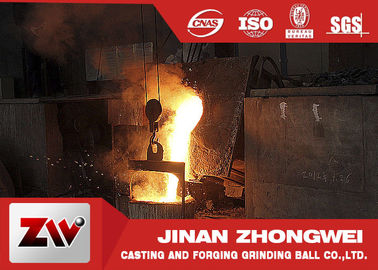

    .Electric furnace smelting:All cast steel balls are produced by intermediate frequency electric furance .The purity and stability of materials are effectively esured after unform temerature conditioning and twice hot metal purificati0n.



    .Assay before furnace :Temperature control is an important and complex process during cast steel ball production.Different tapping temperature and heat temperature are sensitively reflected in the quality of the products.It is requested to master the proper pouring temperature ,mold temperature ,so that can make sure the products achieve a good state of body tisssue during the transition from Liquid to solid states.





    Performance Grinding Balls For Mining / Professional Grinding Media Balls

    Process features of cast iron balls:
    Moulding process---pouing when the molten iron temoerature reaches 1500 C,using the teoperature difference between moletn iron and the molds.in this way,the ball can achieve internal organization of grain refinement and be moredense.menanwhile,the carvide is radially arranged .and such carbide is embedded in the matrix again during grinding process,forming hatd layer continously,so that the hardness and toughness is maintained to a reasonable range,greatly improving the toughness and hardness of the grinding balls.
