| Place of Origin: | CHINA |
| Brand Name: | ZW |
| Certification: | ISO9001:2008 SGS |
| Model Number: | Diameter 15mm-150mm |
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | container bags or steel drums |
| Delivery Time: | 7-20 days after order confirmation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | Annual output 5000 Tons |
| Product Name: | High Chromium Ball | Material: | Chrome Iron |
|---|---|---|---|
| Impact Test: | ≥4 AK.j/cm^2 | Endurance Test Times: | ≥10000 |
| Surface Hardness HRC: | 45-65 | Diameter Tolerance: | +1.5mm,-0.5mm |
| Packing: | Big Bags Or Steel Drums | Breakage Guarantee: | Less Than 0.5% |
| Application Fields: | Metal Mine,power Station,cement Plant,etc | Production Method: | Casting |
| Inquiry: | Info@zwgrindingball.com | ||
| Highlight: | casting iron balls,ball mill media |
||

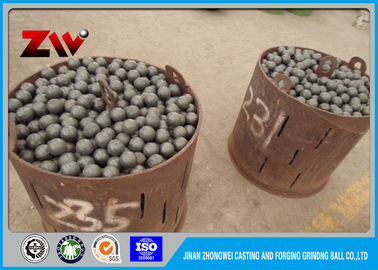

Product name :cast iron balls
Product Type : Low Chromium, Medium Chromium, High Chromium ,Special High Chromium
|
Type |
Chemical Elements (%) |
|||||||
|
C |
Si |
Mn |
Cr |
Mo |
Cu |
P |
S |
|
|
Low Chromium |
2.2-2.5 |
≤1.2 |
0.5-1 |
0.8-1.8 |
0.6-1 |
≤1 |
≤0.05 |
≤0.05 |
|
Middle Chromium |
2.2-3.3 |
≤1.2 |
0.5-1 |
3-6 |
0.6-1 |
≤1 |
≤0.05 |
≤0.05 |
|
High Chromium |
1.6-3.3 |
≤1.0 |
0.5-1 |
10-13 |
0.8-1 |
≤0.6 |
≤0.05 |
≤0.05 |
|
Special High Chromuim |
2.0-3.3 |
≤1.0 |
2.1-3 |
15-23 |
0.8-1 |
≤0.6 |
≤0.05 |
≤0.05 |
The nominal diameter, allowable deviation, maximum diameter, minimum diameter of the cast iron ball should be in accordance with the following table.
|
Nominal Diameter |
20 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
|
Allowable Deviation of Diameter |
+2.0-1.0 |
+2.0-1.0 |
+3.5-1.0 |
|||||||
|
Difference between the Maximum Diameter and Minimum Diameter |
≤1.8 |
≤2.4 |
≤3.0 |
≤3.6 |
≤4.2 |
≤4.6 |
||||
Weight of Jinan Zhongwei Cast Iron Ball
|
Norminal Diameter |
Diametrical Tolerance(mm) |
Approx Weight of Single Ball(kg) |
Average Number Per Ton |
|
25mm/1'' |
+1.5,-0.5 |
0.064 |
15625 |
|
30mm/1.25'' |
+1.5,-0.5 |
0.11 |
9090 |
|
40mm/1.5'' |
+2.0,-1.0 |
0.26 |
3846 |
|
50mm/2'' |
+2.0,-1.0 |
0.51 |
1961 |
|
60mm/2.5'' |
+3.0,-2.0 |
0.89 |
1124 |
|
70mm/2.75'' |
+3.0,-2.0 |
1.4 |
714 |
|
80mm/3.25'' |
+3.0,-2.0 |
2.1 |
476 |
|
90mm/3.5'' |
+3.0,-2.0 |
3 |
333 |
|
100mm/4'' |
+4.0,-3.0 |
4.1 |
244 |
|
110mm/4.5'' |
+4.0,-3.0 |
5.47 |
283 |
|
120mm/4.75 |
+4.0,-3.0 |
7.1 |
141 |
|
130mm/5'' |
+4.0,-3.0 |
9.02 |
111 |
Production process of cast iron balls
