Jinan Zhongwei Casting And Forging Grinding Ball Co.,Ltd

18 Years focus on development and production of grinding media

Casting quality with strength, Forging glory with integrity

Home ProductsBall Mill Balls

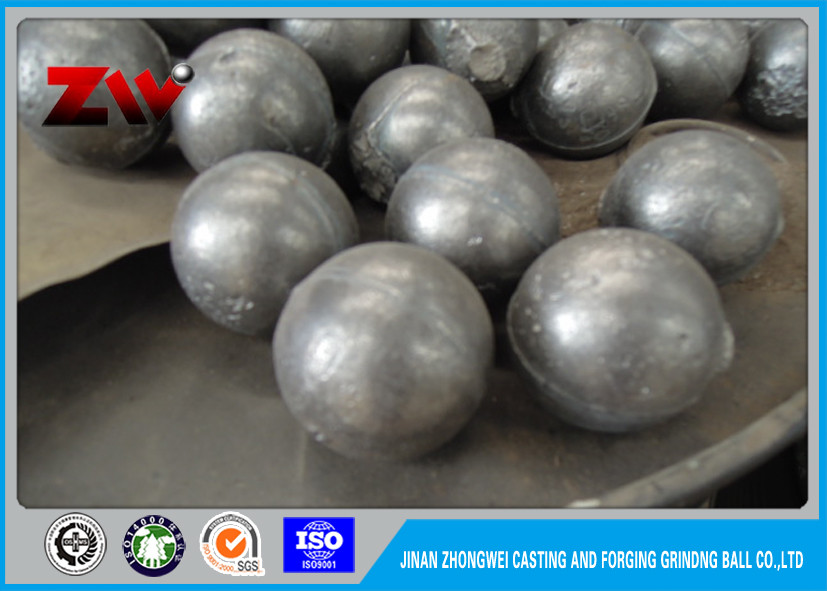

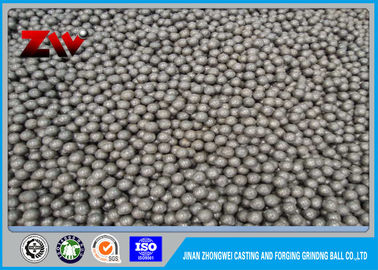

Casting Steel Mineral Consumable Cast Iron Grinding Balls For Ball Mill

Casting Steel Mineral Consumable Cast Iron Grinding Balls For Ball Mill

    • Casting Steel Mineral Consumable Cast Iron Grinding Balls For Ball Mill
    • Casting Steel Mineral Consumable Cast Iron Grinding Balls For Ball Mill
  • Casting Steel Mineral Consumable Cast Iron Grinding Balls For Ball Mill

    Product Details:

    Place of Origin: CHINA
    Brand Name: ZW
    Certification: ISO9001:2008 SGS
    Model Number: GB/T 17445-2009

    Payment & Shipping Terms:

    Minimum Order Quantity: 10/tons
    Price: Negotiable
    Packaging Details: container bags or steel drums
    Delivery Time: 7-14 days
    Supply Ability: 50000 tons/year
    Contact Now
    Detailed Product Description
    Material: Cr:16 Chemical Composition: C Si Mn Cr S P
    Endurance Test Times: ≥10000 Breakage Guarantee: ≤1%
    Nominal Diameter: 25mm-140mm Diametrical Tolerance: +1.5,-0.5
    Microstructure: M+C Heat Treatment: Oil Quenching
    Production Equipment: Forging Forming Application Fields: Metal Mine,power Station,cement Plant,etc
    Quality System Authentication: ISO9001:2008/SGS TEST REPORT Packing Terms: Container Bags Or Steel Drums
    Impact Test: ≥4 AK.j/cm^2 HRC: 58-64
    Name: Cast Iron Steel Grinding Media Balls

    Casting Steel Ball,Mineral Consumable,Cast Iron BallsFor Ball Mill :

    THE PROCESS LINE OF PRODUCTION:
    raw materilals----scientific proportioning----electric furnaxe smelting----assay before furnace----mould forming----polishing----Heat treament----Dimension test----Hardness test----Packing----Transportation----Sea freight

    We are one of the largest factory specialized in producing Forging Grinding Media Ball, Rolling Grinding Media Balland Casting Grinding Media Ball in China. It was founded in 1988, located in Zhangqiu City, Shandong Province, China. Annual Production Capacity is 50,000 metric ton. There are 120 employees, covering an area of 15,000 square meters. Our products have been exported to more than 30 countries and got a lot of praise. We have large-scale production workshop, advanced production equipment and perfect quality assurance system. Our company has passed ISO9001:2000 quality system authentication and we always keep sincere service promise.
    Process features of cast iron balls:
    Moulding process---pouring when the molten iron temperature reaches 1500 C,using the temperature difference between
    molten iron and the molds.in this way,the ball can achieve internal organization of grain refinement and
     be more dense.meanwhile,the carbide is radially arranged .and such carbide is embedded in  the matrix
    again during  grinding process,forming hard layer continously,so that the hardness and toughness is
     maintained to a reasonable range,greatly improving the toughness and hardness of the grinding balls.
    Specifications of our products as follows:

                              Type and Chenical Composition of Cast Balls


           Name



    Material


                           Chemical Composition
             CSiMnS/PCrHRC
    Cast ball

    special hi-cr

    2.0-3.2<1.00.5-2.0<0.06>1858-64

    higt-cr


    2.0-3.2<1.00.5-1.5<0.06>1058-62


    medium-cr

    2.0-3.2<1.00.5-1.5<0.06≥545-48


    low-cr

    2.2-3.4≤1.20.5-1.5≤0.061.0-1.542-46



    5.Package: Steel drums (850kg per drum) or Flexible Container Bags ( 1000kg per bag)

     Products Name: Forged Grinding Ball, Forging Grinding Ball, Forged Ball, Forging Ball, Forged Steel Ball, Forged Grinding Steel Ball, Forged Steel Grinding Ball, Cast Grinding Ball, Casting Grinding Ball, Casted Grinding Ball, Cast Iron Ball, Casting Ball, Cast Ball, Casted Ball, High Chrome Cast Ball, High Chrome Casting Ball, High Chrome Cast Grinding Ball, High Chrome Cast Iron Ball, High Chrome Ball, Low Chrome Cast Ball, Low Chrome Casting Ball, Low Chrome Cast Grinding Ball, Low Chrome Cast Iron Ball, Low Chrome Ball, Medium chrome cast grinding ball, Medium Chrome Casting Ball, Medium Chrome Cast Grinding Ball, Medium Chrome Cast Iron Ball, Medium Chrome Ball,Grinding Ball, Steel Ball, Grinding Steel Ball, Steel Grinding Ball, Grinding Media Ball, Grinding Media, Grinding Media Steel Ball, cast grinding steel ball, casting steel ball, casting grinding steel ball,

    Casting Steel Mineral Consumable Cast Iron Grinding Balls For Ball Mill
