10mm 25mm 125mm 180mm Ball Mill Grinding Media Price Forged Steel Grinding Ball for Mine and Cement Power Plant
Product Description:

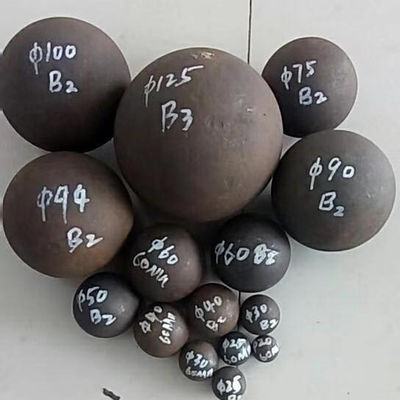

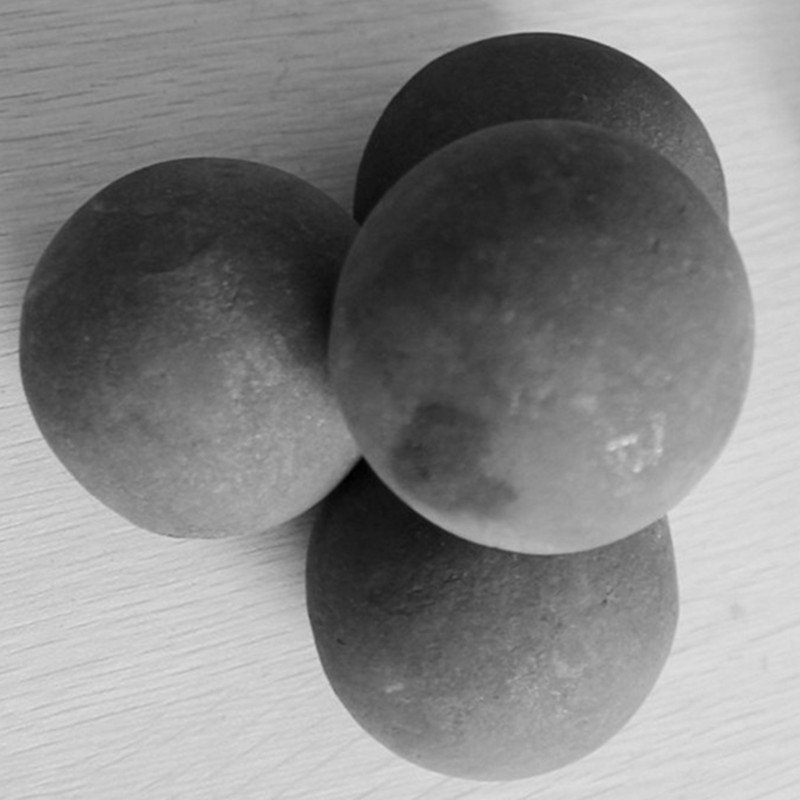

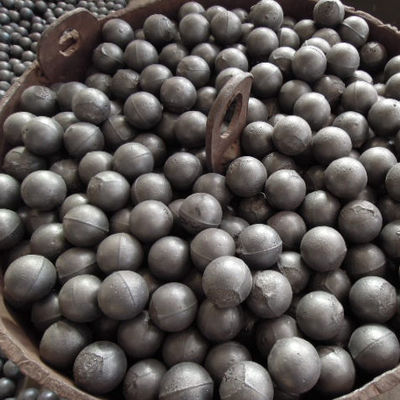

Zhongwei is able to manufacture accurate-size, high-roundness,high-hard rolling balls. They have great wear resistance, difficult deformation and less broken, uniform hardness distribution, high impact toughness( over 12j/cm2). Mainly suitable for industries such as mining, steel, chemical industry, cement plants, power plants, ball coal machine, semi-automatic ball mills, and ball mills,etc.

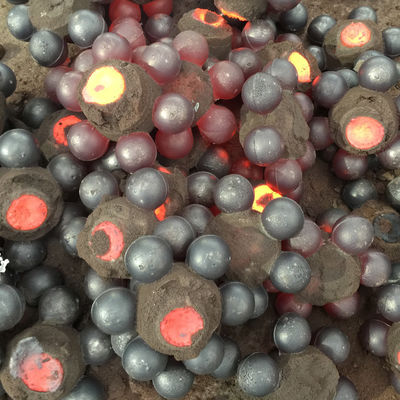

Round alloy steel bar material after passing the inspection, product according to the size of the steel ball . The steel forging is heated to a certain temperature by intermediate frequency furnace to ensure the effective generation of variables in the forging; The red-hot steel forging is sent into the air hammer and processed by skilled operators. After forging the red hot steel ball immediately into specially designed heat treatment equipment for quenching and tempering heat treatment, this can made the steel ball have high and uniform hardness value.
| Material |
Chemical Elements |
|
| C |
Si |
Mn |
P/S |
Cr |
Hardness (HRC) |
| 45# |
0.42-0.50 |
0.17-0.37 |
0.5-0.8 |
<0.035 |
<0.25 |
60-65 |
| 60MN |
0.55-0.65 |
0.17-0.37 |
0.7-1.0 |
<0.04 |
<0.25 |
58-63 |
| B2 |
0.72-0.85 |
0.17-0.37 |
0.7-1.0 |
<0.04 |
0.4-0.6 |
55-58 |
| B3 |
0.58-0.66 |
1.3-1.9 |
0.65-0.8 |
<0.025 |
0.7-0.9
|
56-65 |
| B6 |
0.97-1.03 |
0.2-0.3 |
1.0-1.1 |
<0.025 |
0.5-0.6 |
61-65 |
|
Material
|
25mm-50mm
HRC
|
60mm-90mm
HRC
|
100mm-125mm
HRC
|
130-150mm
HRC
|
| Surface |
Core |
Surface |
Core |
Surface |
Core |
Surface |
Core |
| C45 |
55-58 |
55-58 |
50-68 |
23-30 |
48-52 |
22-26 |
48-52 |
22-25 |
| 60Mn |
58-62 |
55-60 |
58-62 |
30-36 |
57-61 |
26-32 |
57-61 |
26-30 |
| B2 |
60-64 |
58-64 |
57-64 |
45-60 |
55-60 |
38-48 |
55-60 |
38-42 |
| B3 |
62-65 |
60-65 |
60-65 |
58-65 |
56-65 |
50-62 |
56-63 |
50-55 |
| B6 |
62-65 |
60-65 |
61-65 |
58-65 |
60-63 |
50-62 |
61-63 |
50-55
|
Production Line:
1.The materials of the grinding steel balls is different grade round steel bars with various chemical composition.
2. The round bars are heated to a proper temperature in a continuous s furnace before rolling.
3. Red hot bar is conveyed into the skew rolling mill,then it rotate es forward between two rolls with special spiral 7L.As this process continues, it is gradually rolled into steel balls.A single skew rolling m hill can produce 60-200 steel balls per minute.
4.The red hot steel balls are transported directly to the online heat treatment equipment, which is specially designed for quenching and tempering.This makes sure steel balls can obtain high and uniform hardness.
2) Auto Hot Rolling
Raw material →Hot Rolling Mill → Water Quenching → Tempering
Technical Parameters:
| Testing |
Jinan Zhongwei established in 2000, leading manufacturer and exporter of grinding balls in China |
| Production Capacity |
Annual output is 50000 tons to 80000 tons |
| Breakage Guarantee |
≤0.5-1.0% |
| Impact |
>12 |
| Exported Countries |
20 more countries including UAE, Zambia, South Africa, Peru, Chile, Australia, UK, USD, Turkey |
| Wear Resistance |
Better than cast ball with longer service life |
| Impact Toughness |
>12 joules |
| Surface Quality |
Smooth surface without pouring mouth, sand hole, and ring band |
| Breakage Rate |
<0.5% |
| Product Name |
Forged Grinding Metal Carbon Media Steel Ball Ball Mill Uranium Mine Ore 17 40 20 150 60 100 50 80 mm |
Applications:
1. Mining Industry
2. Cement Plants
3. Power Stations
4. Chemical Industry
5. Construction Sector
6. Recycling Plants
Company Information:
Jinan Zhongwei established in 2000 , we are a leading manufacturer and professional exporter grinding balls in China.
Our company covers an area of 15000 square meters, now we have 150 staff, including 13 technical staff. Annual output is 50000 tons to 80000 tons .
Main products : forged steel ball, cast iron ball ,grinding rod, cylpebs
We have exported to 20 more countries, UAE, Zambia,South Africa, Peru, Chile, Australia, UK, USA, Turkey and so on.
Packing and Shipping:
Product Packaging:
( 1 ) Container bag : Dia20mm-150mm 1000kg / Container Bag

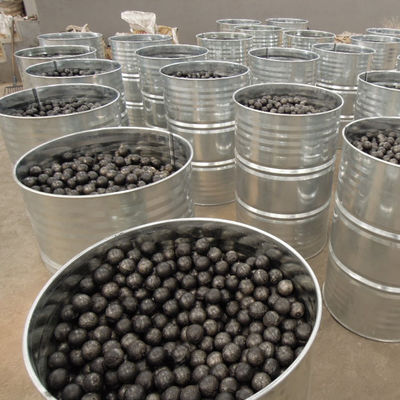

( 2 ) Steel Drums : Dia20mm-80mm 900kg / Drum : Dia90mm-150mm850kgs / Drum ;
( 3 ) Steel Drum on Pallet or Bag on Pallet
FAQ
1.Are you a manufacturer or a trader?
Manufacturer, some time we help our clients to purchase related products as a trader.
2.What’s the MOQ?
The MOQ varies for different products. Please contact us to understand.
3.how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
4.Can you provide samples for free?
Yes, we can supply samples for free, and the freight will be undertaken by clients.
5.May I visit your factory?
Yes, we will arrange professional reception personnel to patiently explain to you.
6.Why choose us over other suppliers?
We have a large scale, strong strength, and rich experience, professional technology, and perfect customer service, and have obtained various certifications such as CE/ISO9001/ISO45001.
