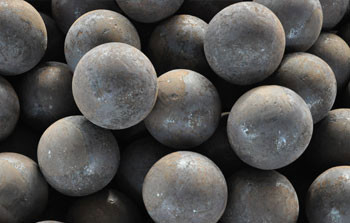

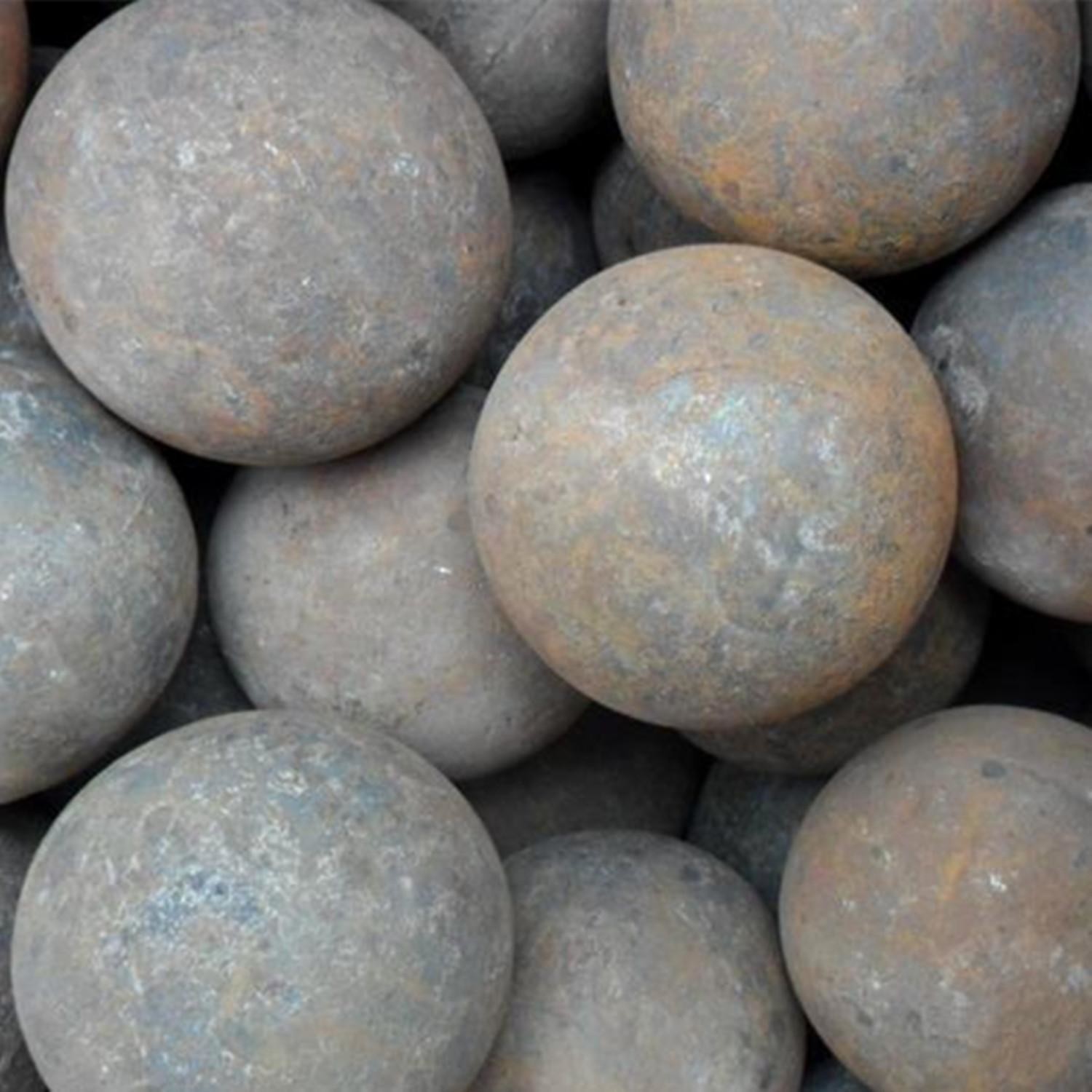

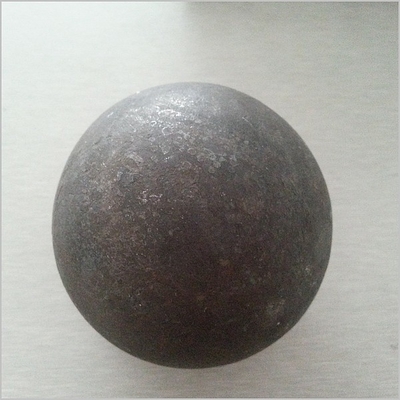

Ball Mill Grinding Media Ball Price 20-180mm Forged Steel Ball Used for Mining Grinding Cement
Product Description:
Heating the customed steel until the temperature reaches 1100C( 土50C) in the way of hot rolling and forging,the rollig forging machinery will put pressure on the metal blank and producing a grinding ball with certain mechanical property, shape and size . This is our processing methods of the grinding balls.
| Material |
Chemical Elements |
|
| C |
Si |
Mn |
P/S |
Cr |
Hardness (HRC) |
| 45# |
0.42-0.50 |
0.17-0.37 |
0.5-0.8 |
<0.035 |
<0.25 |
60-65 |
| 60MN |
0.55-0.65 |
0.17-0.37 |
0.7-1.0 |
<0.04 |
<0.25 |
58-63 |
| B2 |
0.72-0.85 |
0.17-0.37 |
0.7-1.0 |
<0.04 |
0.4-0.6 |
55-58 |
| B3 |
0.58-0.66 |
1.3-1.9 |
0.65-0.8 |
<0.025 |
0.7-0.9
|
56-65 |
| B6 |
0.97-1.03 |
0.2-0.3 |
1.0-1.1 |
<0.025 |
0.5-0.6 |
61-65 |
|
Material
|
25mm-50mm
HRC
|
60mm-90mm
HRC
|
100mm-125mm
HRC
|
130-150mm
HRC
|
| Surface |
Core |
Surface |
Core |
Surface |
Core |
Surface |
Core |
| C45 |
55-58 |
55-58 |
50-68 |
23-30 |
48-52 |
22-26 |
48-52 |
22-25 |
| 60Mn |
58-62 |
55-60 |
58-62 |
30-36 |
57-61 |
26-32 |
57-61 |
26-30 |
| B2 |
60-64 |
58-64 |
57-64 |
45-60 |
55-60 |
38-48 |
55-60 |
38-42 |
| B3 |
62-65 |
60-65 |
60-65 |
58-65 |
56-65 |
50-62 |
56-63 |
50-55 |
| B6 |
62-65 |
60-65 |
61-65 |
58-65 |
60-63 |
50-62 |
61-63 |
50-55
|
Production Line:
1) Traditional Forged
Raw material →Cutting →Heating → Water quenching → Tempering
2) Auto Hot Rolling
Raw material →Hot Rolling Mill → Water Quenching → Tempering
Technical Parameters:
| Testing |
Jinan Zhongwei established in 2000, leading manufacturer and exporter of grinding balls in China |
| Production Capacity |
Annual output is 50000 tons to 80000 tons |
| Breakage Guarantee |
≤0.5-1.0% |
| Impact |
>12 |
| Exported Countries |
20 more countries including UAE, Zambia, South Africa, Peru, Chile, Australia, UK, USD, Turkey |
| Wear Resistance |
Better than cast ball with longer service life |
| Impact Toughness |
>12 joules |
| Surface Quality |
Smooth surface without pouring mouth, sand hole, and ring band |
| Breakage Rate |
<0.5% |
| Product Name |
Hot Rolling Forged Forging Grinding Media Steel Ball Manufacturer Factory for Sale Grinding Gold Mine Ore Ball Mill |
Applications:
ZW Forged Grinding Ball is a high-quality product designed for various industrial applications. The product is suitable for use in a wide range of scenarios due to its durability, reliability, and performance. Here are some Product Application Occasions and Scenarios for the Forged Grinding Ball:
They have great wear resistance, difficult deformation and less broken, uniform hardness distribution, high impact toughness( over 12j/cm2). Mainly suitable for industries such as mining, steel, chemical industry, cement plants, power plants, ball coal machine, semi-automatic ball mills, and ball mills,etc.
Testing
Quality control for each production shift (4hours/Shift);
Hardness, chemical elements and impact testing after production for each production shift;
SGS –third party testing before each delivery
Packing and Shipping:
Product Packaging:
Each Forged Grinding Ball is carefully packed in individual boxes to ensure safe transportation and handling. The boxes are labeled with product information and specifications for easy identification.
Shipping:
Our Forged Grinding Balls are shipped in sturdy cartons to protect them from damage during transit. We work with trusted shipping partners to ensure timely delivery to our customers.
