Factory 30mm Forged Grinding Steel Ball High Quality Grinding Balls for Cement Mill

Product Details:

Place of Origin:	Jinan city,Shandong province,China
Brand Name:	ZW
Certification:	ISO9001:2008
Model Number:	forged ball,grinding media ball

Payment & Shipping Terms:

Minimum Order Quantity:	1 tons
Price:	Negotiable
Packaging Details:	container bags ,steel drum
Delivery Time:	3 days after order confirmation
Supply Ability:	Annual output 80000 tons

Contact Now

Detailed Product Description

Sample:	Avaiable	Product Name:	Factory 30mm Forged Grinding Steel Ball High Quality Grinding Balls For Cement Mill
Applicable Industries:	Building Material Shops, Manufacturing Plant,	Material:	C,Si,Mn,P,S,Gr
Certifications:	ISO9001:2008

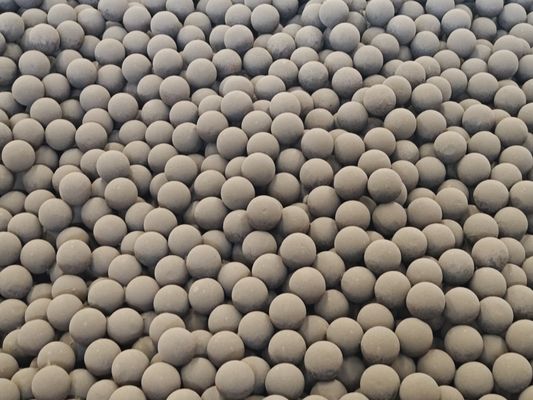

Factory 30mm Forged Grinding Steel Ball High Quality Grinding Balls for Cement Mill

Name: Factory 30mm Forged Grinding Steel Ball High Quality Grinding Balls for Cement Mill
Brand: Jinan Zhongwei Casting And Forging Grinding Ball Co.,Ltd
SKU: forged ball,grinding media ball
Price: 725.00 USD
Availability: InStock

Advantages

1) No deformation
2) High hardness Good wear resistant
3) Size:Dia12mm-150mm
4) Breakage<1%
5) Certification: ISO9001,SGS.

Intorduction

Grinding steel balls‌ are a main tool for grinding materials, usually used in ball mills. Grinding steel balls produce abrasive effects through collision and friction with materials, thereby achieving the grinding effect of materials

Forged Ball Details:

1.Tthe broken rate of less than 0.5%, crush resistance is generally cast ball more than 10 times.
2.The impact toughness of high impact toughness than 18J/cm2: 8 meters, more than 20000 times of falling ball experiment.
3.The high hardness, the surface hardness of 55-68HRC, volume of hardness of 57-64HRC, and the average hardness gradient distribution.
4.No deformation, the ball is always not deformation, not out of roundness.
5.Compact structure, high performance-price ratio.

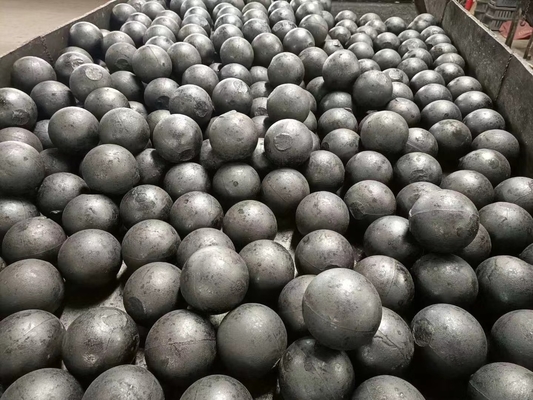

Factory 30mm Forged Grinding Steel Ball High Quality Grinding Balls for Cement Mill 0

Material	Chemical Elements
Material	C	Si	Mn	P/S	Cr	Hardness (HRC)
45#	0.42-0.50	0.17-0.37	0.5-0.8	<0.035	<0.25	60-65
60MN	0.55-0.65	0.17-0.37	0.7-1.0	<0.04	<0.25	58-63
B2	0.72-0.85	0.17-0.37	0.7-1.0	<0.04	0.4-0.6	55-58
B3	0.58-0.66	1.3-1.9	0.65-0.8	<0.025	0.7-0.9	56-65
B6	0.97-1.03	0.2-0.3	1.0-1.1	<0.025	0.5-0.6	61-65

Material	25mm-50mm HRC		60mm-90mm HRC		100mm-125mm HRC		130-150mm HRC
Material	Surface	Core	Surface	Core	Surface	Core	Surface	Core
C45	55-58	55-58	50-68	23-30	48-52	22-26	48-52	22-25
60Mn	58-62	55-60	58-62	30-36	57-61	26-32	57-61	26-30
B2	60-64	58-64	57-64	45-60	55-60	38-48	55-60	38-42
B3	62-65	60-65	60-65	58-65	56-65	50-62	56-63	50-55
B6	62-65	60-65	61-65	58-65	60-63	50-62	61-63	50-55

Production Line

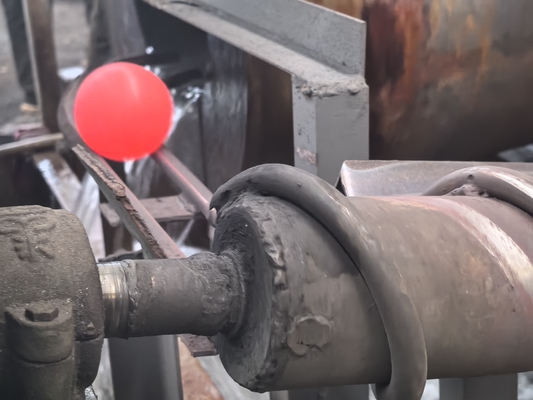

1) Traditional Forged

Raw material →Cutting →Heating → Water quenching → Tempering

Factory 30mm Forged Grinding Steel Ball High Quality Grinding Balls for Cement Mill 1

2) Auto Hot Rolling

Raw material →Hot Rolling Mill → Water Quenching → Tempering

Factory 30mm Forged Grinding Steel Ball High Quality Grinding Balls for Cement Mill 2

3) Casting
Raw material preparation →Smelting→ Pouring→Cooling and demoulding→Heat treatment and inspection

Factory 30mm Forged Grinding Steel Ball High Quality Grinding Balls for Cement Mill 3

Test

The steel ball quality inspection process‌ mainly includes the following steps: ‌Appearance quality inspection‌: First, check the surface quality of the steel ball to observe whether there are obvious defects such as cracks, depressions, bubbles, etc. These defects will affect the performance and life of the steel ball.

Size and weight detection

Hardness test

Chemical composition analysis

Metallurgical structure analysis

Physical property test

Wear resistance test

Testing standards and items include hardness testing, appearance testing, wear resistance testing, tolerance testing, roundness testing, quality testing, composition testing, material testing, metal grade identification, chromium content testing, impact resistance testing, non-destructive testing, etc.

Packing & Shipping

Company Profile

Jinan Zhongwei established in 2000 , we are a leading manufacturer and professional exporter grinding balls in China.

Our company covers an area of 15000 square meters, now we have 150 staff, including 13 technical staff. Annual output is 50000 tons to 80000 tons .

Main products : forged steel ball, cast iron ball ,grinding rod, cylpebs
We have exported to 20 more countries, UAE, Zambia,South Africa, Peru, Chile, Australia, UK, USA, Turkey and so on.

Question and Answer

Q. What's the MOQ of your product?
As usual MOQ is 1TONS.Or as your require, we need to calculate the new price to you.

Q. What atandars you carring out for your products?
SAE standard and ISO9001, SGS.

Q.What’s the delivery time?
A : 5-10 work days after receiving client’s payment

Q.Do you have any timely technology supports?
A: We have a professional technology supporting team for your timely services. We prepare the technical documents for you, also you can contact us by telephone, online chat (whats, skype, phone).
