| Place of Origin: | Jinan city,Shandong province,China |
| Brand Name: | ZW |
| Certification: | ISO9001:2008 |
| Model Number: | forged ball,grinding media ball |
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | container bags ,steel drum |
| Delivery Time: | 3 days after order confirmation |
| Supply Ability: | Annual output 80000 tons |
| Port Of Loading: | Qingdao Port,China | Heat Treatment: | Water Quenching |
|---|---|---|---|
| Key Word: | Grinding Media Ball | Balls Number: | ≥12000 Times |

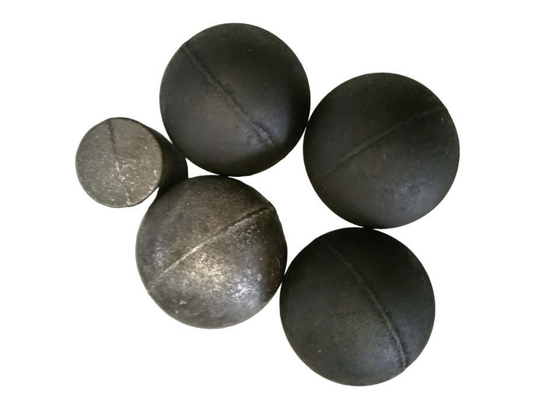

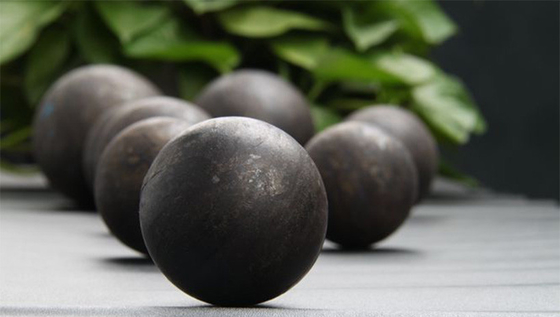

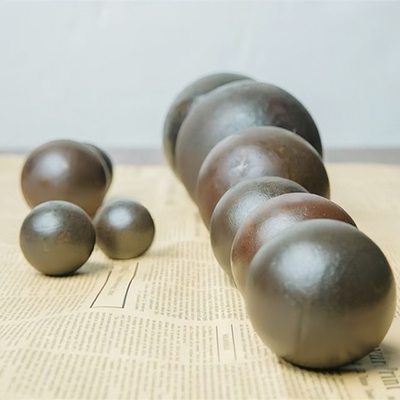

| Product Name: | Factory Direct Sale 20MM To 150MM Forged Steel Ball Grinding Ball Mill Steel Ball B2/B3 For Milling | Place Of Origin: | Shandong, China |
| Application: | Mining,cement Plant, Power Station | Surface Hardness: | ≥60 HRC |
| Highlight: | 150MM Grinding Ball,B2 / B3 Grinding Ball,Milling Grinding Ball |
||
1) No deformation
2) High hardness Good wear resistant
3) Size:Dia12mm-150mm
4) Breakage<1%
5) Certification: ISO9001,SGS.
Grinding steel balls are a main tool for grinding materials, usually used in ball mills. Grinding steel balls produce abrasive effects through collision and friction with materials, thereby achieving the grinding effect of materials

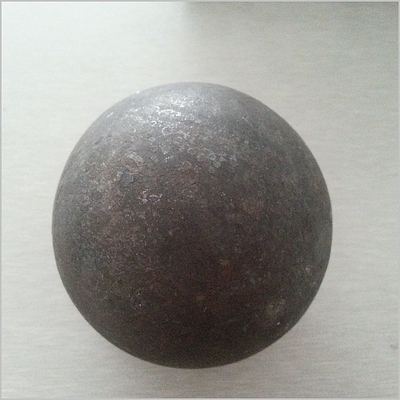

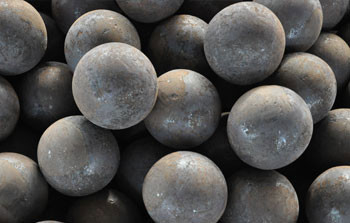

Forged Ball Details:
| Material | Chemical Elements | |||||
| C | Si | Mn | P/S | Cr | Hardness (HRC) | |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | <0.035 | <0.25 | 60-65 |
| 60MN | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | <0.04 | <0.25 | 58-63 |
| B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | <0.04 | 0.4-0.6 | 55-58 |
| B3 | 0.58-0.66 | 1.3-1.9 | 0.65-0.8 | <0.025 | 0.7-0.9 |
56-65 |
| B6 | 0.97-1.03 | 0.2-0.3 | 1.0-1.1 | <0.025 | 0.5-0.6 | 61-65 |
|
Material
|
25mm-50mm HRC |
60mm-90mm HRC |
100mm-125mm HRC
|
130-150mm HRC |
||||
| Surface | Core | Surface | Core | Surface | Core | Surface | Core | |
| C45 | 55-58 | 55-58 | 50-68 | 23-30 | 48-52 | 22-26 | 48-52 | 22-25 |
| 60Mn | 58-62 | 55-60 | 58-62 | 30-36 | 57-61 | 26-32 | 57-61 | 26-30 |
| B2 | 60-64 | 58-64 | 57-64 | 45-60 | 55-60 | 38-48 | 55-60 | 38-42 |
| B3 | 62-65 | 60-65 | 60-65 | 58-65 | 56-65 | 50-62 | 56-63 | 50-55 |
| B6 | 62-65 | 60-65 | 61-65 | 58-65 | 60-63 | 50-62 | 61-63 | 50-55 |

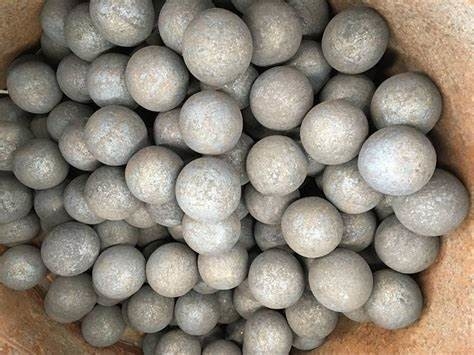

Casting Ball
1) Traditional Forged
Raw material →Cutting →Heating → Water quenching → Tempering
2) Auto Hot Rolling
Raw material →Hot Rolling Mill → Water Quenching → Tempering
3) Casting
Raw material preparation →Smelting→ Pouring→Cooling and demoulding→Heat treatment and inspection
The steel ball quality inspection process mainly includes the following steps: Appearance quality inspection: First, check the surface quality of the steel ball to observe whether there are obvious defects such as cracks, depressions, bubbles, etc. These defects will affect the performance and life of the steel ball.
Size and weight detection: Use precise measuring instruments such as calipers and micrometers to measure the diameter, roundness, weight and other indicators of the steel ball and compare them with the standard values. If there is a large deviation, it means that there is a problem with the size and weight of the steel ball.
Hardness test: Use a hardness tester to measure the hardness value of the steel ball to determine whether it meets the standard requirements. The hardness value is related to factors such as chemical composition and heat treatment process.
Chemical composition analysis: Use modern equipment such as inductively coupled plasma optical emission spectrometer (ICP-OES) to analyze the chemical composition of the steel ball to ensure that its composition meets the prescribed chemical composition standards.
Metallurgical structure analysis: Use optical microscopes and other equipment to observe the metallographic structure of the steel ball, evaluate its organizational morphology, grain size, phase distribution, etc., to understand its mechanical properties and wear resistance.
Physical property test: Including tensile and bending tests to evaluate whether the physical properties of the steel ball meet the requirements. These test results are related to the wear resistance, mechanical properties and vibration characteristics of the steel ball.
Wear resistance test: Test the wear resistance of the steel ball under actual use conditions to ensure its performance in long-term use.
Fatigue test: Evaluate the service life of the steel ball under repeated stress conditions to ensure its stability under high load.
Testing standards and items include hardness testing, appearance testing, wear resistance testing, tolerance testing, roundness testing, quality testing, composition testing, material testing, metal grade identification, chromium content testing, impact resistance testing, non-destructive testing, etc.
Testing equipment and tools include hardness tester, optical microscope, roundness tester, diameter measuring instrument, chemical analyzer, tensile testing machine, fatigue testing machine, surface roughness tester, X-ray diffractometer, coating thickness gauge, density meter, impact resistance testing machine, conductivity tester, etc.
Q. What's the MOQ of your product?
As usual MOQ is 1TONS.Or as your require, we need to calculate the new price to you.
Q. What atandars you carring out for your products?
SAE standard and ISO9001, SGS.
Q.What’s the delivery time?
A : 5-10 work days after receiving client’s payment
Q.Do you have any timely technology supports?
A: We have a professional technology supporting team for your timely services. We prepare the technical documents for you, also you can contact us by telephone, online chat (whats, skype, phone).
