| Place of Origin: | Jinan city,Shandong province,China |
| Brand Name: | ZW |
| Certification: | ISO9001:2008 |
| Model Number: | 45#,60Mn B2,B3,B6 |
| Minimum Order Quantity: | 25 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | container bags ,steel drum |
| Delivery Time: | 1-3 weeks after the advance |
| Supply Ability: | Annual output 50000 tons |
| Hardness: | HRC 55-65 | Production Capacity: | Annual Output Is 50000 Tons To 80000 Tons |
|---|---|---|---|
| Exported Countries: | 20 More Countries Including UAE, Zambia, South Africa, Peru, Chile, Australia, UK, USD, Turkey | Product Name: | Forged Grinding Steel Ball Forged Steel Balls Made From High Quality Raw Materials Used Mine |
| Hsc: | 73261100 | Key Word: | Grinding Balls For Ball Mill |
| Impact Value: | ≥12 J/cm2 | ||
| Highlight: | Mine Grinding Steel Ball,Forged Grinding Steel Ball,Chemical Industries Grinding Steel Ball |
||

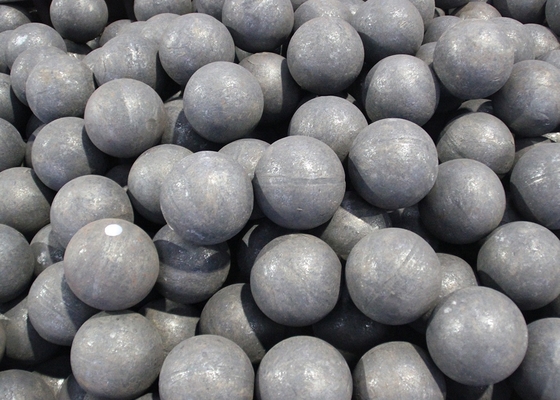

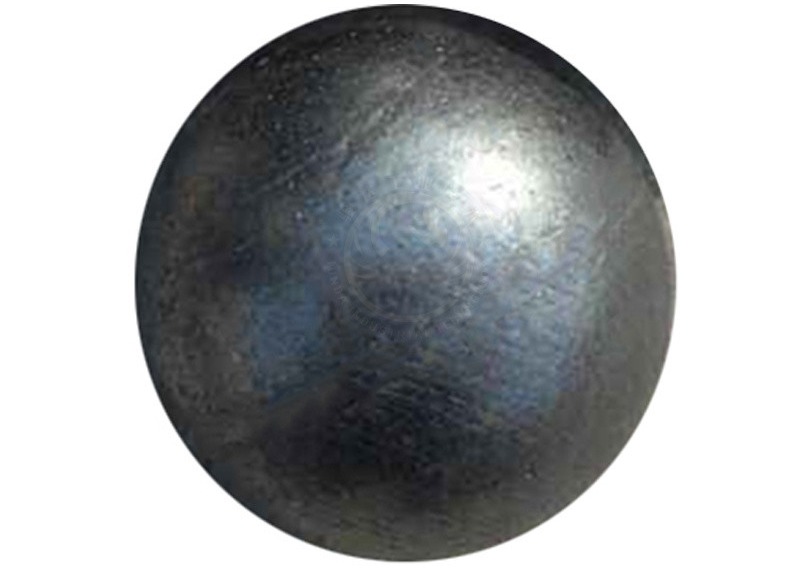

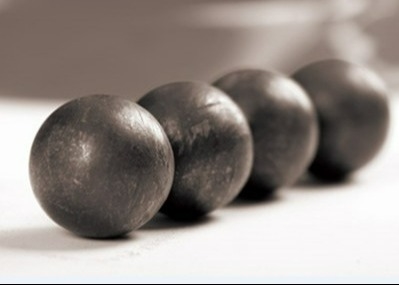

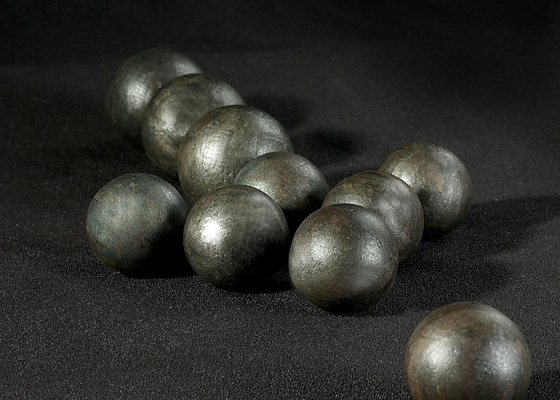

Forged Grinding Steel Ball Forged Steel Balls Made From High Quality Raw Materials Used Mine
The Forged Grinding Ball is a high-quality product designed for various grinding applications in industries such as mining, cement plants, power stations, and chemical industries. Known by various names such as Grinding Steel Ball, Forged Iron Ball, and Hot Rolled Grinding Ball, this product offers exceptional performance and durability.
One of the key features of the Forged Grinding Ball is its excellent Breakage Guarantee, which stands at ≤0.5-1.0%. This ensures minimal wastage during the grinding process, making it a cost-effective choice for industries with high grinding requirements.
When it comes to Surface Quality, the Forged Grinding Ball stands out with its smooth surface that is free from pouring mouth, sand hole, and ring band defects. This superior surface quality not only enhances the efficiency of the grinding process but also contributes to the longevity of the ball.
| Material | Chemical Elements | |||||
| C | Si | Mn | P/S | Cr | Hardness (HRC) | |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | <0.035 | <0.25 | 60-65 |
| 60MN | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | <0.04 | <0.25 | 58-63 |
| B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | <0.04 | 0.4-0.6 | 55-58 |
| B3 | 0.58-0.66 | 1.3-1.9 | 0.65-0.8 | <0.025 | 0.7-0.9 |
56-65 |
| B6 | 0.97-1.03 | 0.2-0.3 | 1.0-1.1 | <0.025 | 0.5-0.6 | 61-65 |
|
Material
|
25mm-50mm HRC |
60mm-90mm HRC |
100mm-125mm HRC
|
130-150mm HRC |
||||
| Surface | Core | Surface | Core | Surface | Core | Surface | Core | |
| C45 | 55-58 | 55-58 | 50-68 | 23-30 | 48-52 | 22-26 | 48-52 | 22-25 |
| 60Mn | 58-62 | 55-60 | 58-62 | 30-36 | 57-61 | 26-32 | 57-61 | 26-30 |
| B2 | 60-64 | 58-64 | 57-64 | 45-60 | 55-60 | 38-48 | 55-60 | 38-42 |
| B3 | 62-65 | 60-65 | 60-65 | 58-65 | 56-65 | 50-62 | 56-63 | 50-55 |
| B6 | 62-65 | 60-65 | 61-65 | 58-65 | 60-63 | 50-62 | 61-63 | 50-55 |

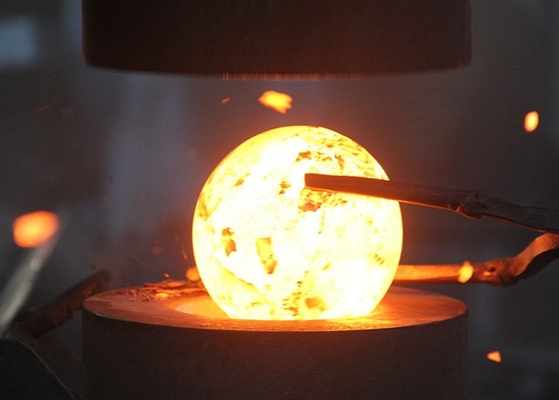

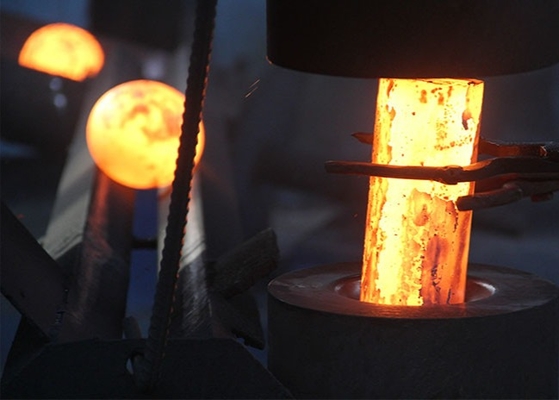

1) Traditional Forged
Raw material →Cutting →Heating → Water quenching → Tempering
2) Auto Hot Rolling
Raw material →Hot Rolling Mill → Water Quenching → Tempering
Our Product Technical Support and Services for Forged Grinding Ball include:
- Expert guidance on selecting the appropriate grinding ball for your specific needs.
- Assistance with installation and maintenance to ensure optimal performance.
- Troubleshooting support to address any issues that may arise during use.
- Training programs to help customers maximize the efficiency and lifespan of the grinding balls.
- Regular updates on new developments and innovations in the field of grinding ball technology.
inan Zhongwei established in 2000 , we are a leading manufacturer and professional exporter grinding balls in China.
Our company covers an area of 15000 square meters, now we have 150 staff, including 13 technical staff. Annual output is 50000 tons to 80000 tons .
Main products : forged steel ball, cast iron ball ,grinding rod, cylpebs
We have exported to 20 more countries, UAE, Zambia,South Africa, Peru, Chile, Australia, UK, USA, Turkey and so on.
Quality control for each production shift (4hours/Shift);
Hardness, chemical elements and impact testing after production for each production shift;
SGS –third party testing before each delivery
Product Packaging:
Each Forged Grinding Ball is carefully packed in individual boxes to ensure safe transportation and handling. The boxes are labeled with product information and specifications for easy identification.
Shipping:
Our Forged Grinding Balls are shipped in sturdy cartons to protect them from damage during transit. We work with trusted shipping partners to ensure timely delivery to our customers.
Q. What's the MOQ of your product?
As usual MOQ is 1TONS.Or as your require, we need to calculate the new price to you.
Q. What atandars you carring out for your products?
SAE standard and ISO9001, SGS.
Q.What’s the delivery time?
A : 5-10 work days after receiving client’s payment
Q.Do you have any timely technology supports?
A: We have a professional technology supporting team for your timely services. We prepare the technical documents for you, also you can contact us by telephone, online chat (whats, skype, phone).
