| Place of Origin: | Jinan city,Shandong province,China |
| Brand Name: | ZW |
| Certification: | ISO9001:2008 |
| Model Number: | 45#,60Mn B2,B3,B6 |
| Minimum Order Quantity: | 25 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | container bags ,steel drum |
| Delivery Time: | 1-3 weeks after the advance |
| Supply Ability: | Annual output 50000 tons |
| Impact Toughness: | >12 Joules | Exported Countries: | 20 More Countries Including UAE, Zambia, South Africa, Peru, Chile, Australia, UK, USD, Turkey |
|---|---|---|---|
| Product Name: | High Hardness Carbon Forged Steel Grinding Ball 60mm 150mm Forged Grinding Steel Balls | Process: | Quenching,Raw Material.smelting.moulding.grinding.quenching.temper.hardness Test |
| Shape: | Ball | Sample: | Available |
| Surface Treatment: | Grinding | Grade: | YG15/YG12/YG13/YG13C/YG18C/YG20C/YG22C/YG25/YG25C |
| Highlight: | 60mm Forged Grinding Ball,150mm Forged Grinding Ball,High Hardness Forged Grinding Ball |
||
High Hardness Carbon Forged Steel Grinding Ball 60mm 150mm Forged Grinding Steel Balls
Forged steel balls are made by heating the metal to a suitable temperature, applying pressure to the metal blank by forging, causing it to undergo plastic deformation to obtain steel balls with certain mechanical properties, shapes and sizes. This process can eliminate defects such as loose casting produced during the smelting process, optimize the microstructure, and preserve the complete metal flow line, so that the mechanical properties of the forging are better than those of the castings of the same material.

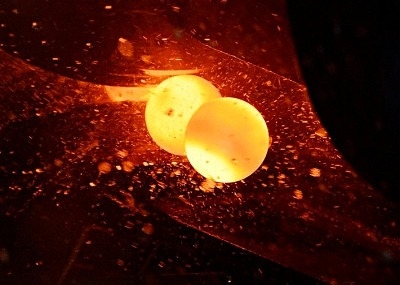

Heating the customed steel until the temperature reaches 1100C( 土50C) in the way of hot rolling and forging,the rollig forging machinery will put pressure on the metal blank and producing a grinding ball with certain mechanical property, shape and size . This is our processing methods of the grinding balls.
| Material | Chemical Elements | |||||
| C | Si | Mn | P/S | Cr | Hardness (HRC) | |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | <0.035 | <0.25 | 60-65 |
| 60MN | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | <0.04 | <0.25 | 58-63 |
| B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | <0.04 | 0.4-0.6 | 55-58 |
| B3 | 0.58-0.66 | 1.3-1.9 | 0.65-0.8 | <0.025 | 0.7-0.9 |
56-65 |
| B6 | 0.97-1.03 | 0.2-0.3 | 1.0-1.1 | <0.025 | 0.5-0.6 | 61-65 |
|
Material
|
25mm-50mm HRC |
60mm-90mm HRC |
100mm-125mm HRC
|
130-150mm HRC |
||||
| Surface | Core | Surface | Core | Surface | Core | Surface | Core | |
| C45 | 55-58 | 55-58 | 50-68 | 23-30 | 48-52 | 22-26 | 48-52 | 22-25 |
| 60Mn | 58-62 | 55-60 | 58-62 | 30-36 | 57-61 | 26-32 | 57-61 | 26-30 |
| B2 | 60-64 | 58-64 | 57-64 | 45-60 | 55-60 | 38-48 | 55-60 | 38-42 |
| B3 | 62-65 | 60-65 | 60-65 | 58-65 | 56-65 | 50-62 | 56-63 | 50-55 |
| B6 | 62-65 | 60-65 | 61-65 | 58-65 | 60-63 | 50-62 | 61-63 | 50-55 |
1) Traditional Forged
Raw material →Cutting →Heating → Water quenching → Tempering
2) Auto Hot Rolling
Raw material →Hot Rolling Mill → Water Quenching → Tempering
| Testing | Jinan Zhongwei established in 2000, leading manufacturer and exporter of grinding balls in China |
| Production Capacity | Annual output is 50000 tons to 80000 tons |
| Breakage Guarantee | ≤0.5-1.0% |
| Impact | >12 |
| Exported Countries | 20 more countries including UAE, Zambia, South Africa, Peru, Chile, Australia, UK, USD, Turkey |
| Wear Resistance | Better than cast ball with longer service life |
| Impact Toughness | >12 joules |
| Surface Quality | Smooth surface without pouring mouth, sand hole, and ring band |
| Breakage Rate | <0.5% |
| Product Name | High Hardness Carbon Forged Steel Grinding Ball 60mm 150mm Forged Grinding Steel Balls |
Jinan Zhongwei established in 2000 , we are a leading manufacturer and professional exporter grinding balls in China.
Our company covers an area of 15000 square meters, now we have 150 staff, including 13 technical staff. Annual output is 50000 tons to 80000 tons .
Main products : forged steel ball, cast iron ball ,grinding rod, cylpebs
We have exported to 20 more countries, UAE, Zambia,South Africa, Peru, Chile, Australia, UK, USA, Turkey and so on.
Quality control for each production shift (4hours/Shift);
Hardness, chemical elements and impact testing after production for each production shift;
SGS –third party testing before each delivery
Product Packaging:
Each Forged Grinding Ball is carefully packed in individual boxes to ensure safe transportation and handling. The boxes are labeled with product information and specifications for easy identification.
Shipping:
Our Forged Grinding Balls are shipped in sturdy cartons to protect them from damage during transit. We work with trusted shipping partners to ensure timely delivery to our customers.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit for the order?
A: 1ton MOQ.
Q3. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q4.May I visit your factory?
Yes, we will arrange professional reception personnel to patiently explain to you.
Q5.Why choose us over other suppliers?
We have a large scale, strong strength, and rich experience, professional technology, and perfect customer service, and have obtained various certifications such as CE/ISO9001/ISO45001.
