| Place of Origin: | Zhangqiu,Jinan city,Shandong province,China |
| Brand Name: | ZW( Jinan Zhongwei ) |
| Certification: | ISO9001:2008 |
| Model Number: | forged ball,cast ball, cylpebs |
| Minimum Order Quantity: | 10 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | container bags ,steel drum |
| Delivery Time: | 1-3 weeks after the advance |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | Annual output 50000 tons |
| Technology: | Forging,hot Rolling,casting | Packing: | In Steel Drums Or Big Bags |
|---|---|---|---|
| Drop Times: | ≥12000 | Coutry Of Origin: | China |
| Advantage: | High Wear Resistant | Usage: | Mining,Cement Plant,Power Station |
| Product Name: | Ball Mill Grinding Media Ball Price 20-180mm Forged Steel Ball Used For Mining Grinding Cement | Heat Treatment: | Quenchining & Tempering |
| Highlight: | Mining Ball Mill Grinding Media Ball,Cement Ball Mill Grinding Media Ball |
||

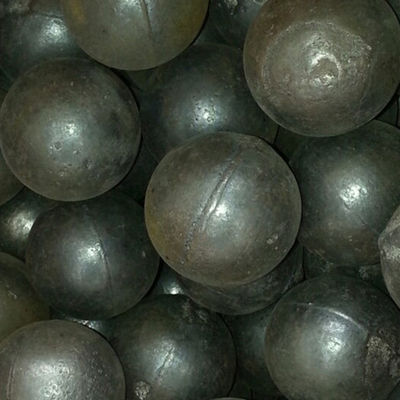

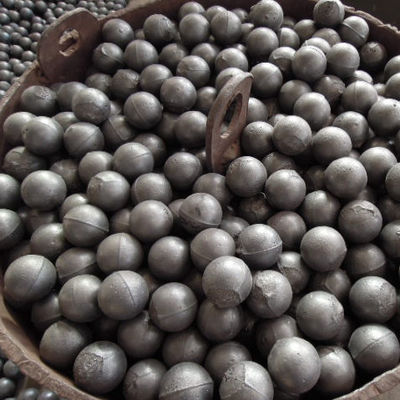

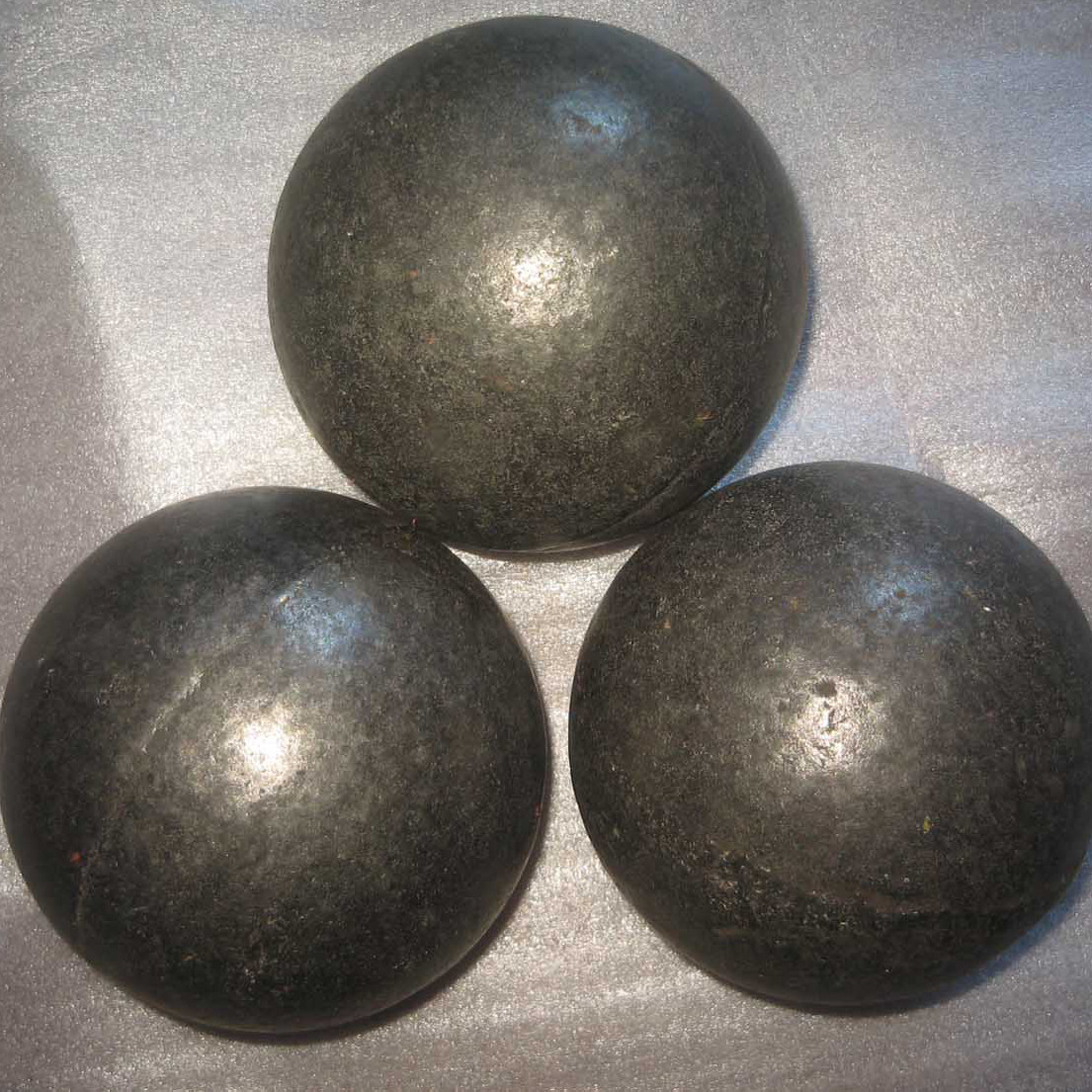

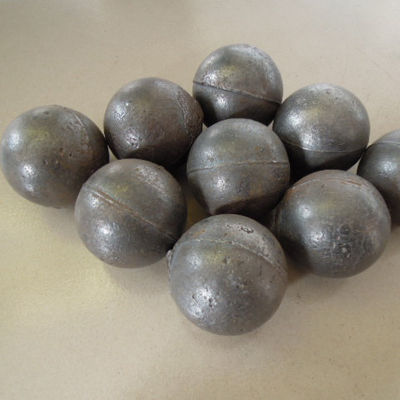

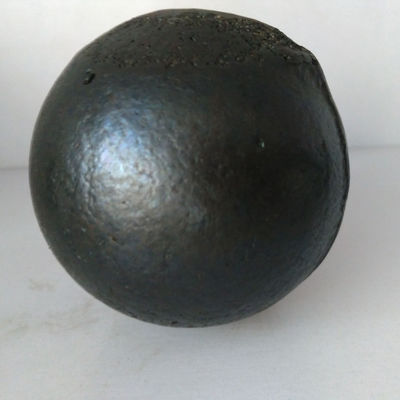

Ball Mill Grinding Media Ball Price 20-180mm Forged Steel Ball Used for Mining Grinding Cement
The Forged Grinding Ball is a high-quality product designed for various grinding applications in industries such as mining, cement plants, power stations, and chemical industries. Known by various names such as Grinding Steel Ball, Forged Iron Ball, and Hot Rolled Grinding Ball, this product offers exceptional performance and durability.
| Material | Chemical Elements | |||||
| C | Si | Mn | P/S | Cr | Hardness (HRC) | |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | <0.035 | <0.25 | 60-65 |
| 60MN | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | <0.04 | <0.25 | 58-63 |
| B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | <0.04 | 0.4-0.6 | 55-58 |
| B3 | 0.58-0.66 | 1.3-1.9 | 0.65-0.8 | <0.025 | 0.7-0.9 |
56-65 |
| B6 | 0.97-1.03 | 0.2-0.3 | 1.0-1.1 | <0.025 | 0.5-0.6 | 61-65 |
|
Material
|
25mm-50mm HRC |
60mm-90mm HRC |
100mm-125mm HRC
|
130-150mm HRC |
||||
| Surface | Core | Surface | Core | Surface | Core | Surface | Core | |
| C45 | 55-58 | 55-58 | 50-68 | 23-30 | 48-52 | 22-26 | 48-52 | 22-25 |
| 60Mn | 58-62 | 55-60 | 58-62 | 30-36 | 57-61 | 26-32 | 57-61 | 26-30 |
| B2 | 60-64 | 58-64 | 57-64 | 45-60 | 55-60 | 38-48 | 55-60 | 38-42 |
| B3 | 62-65 | 60-65 | 60-65 | 58-65 | 56-65 | 50-62 | 56-63 | 50-55 |
| B6 | 62-65 | 60-65 | 61-65 | 58-65 | 60-63 | 50-62 | 61-63 | 50-55 |

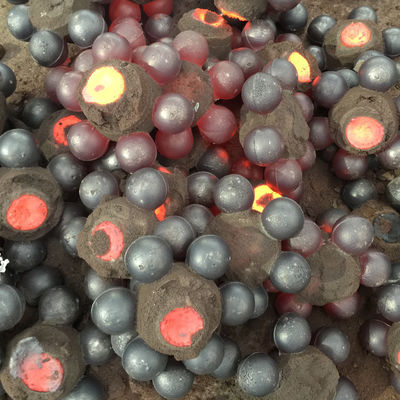

1) Traditional Forged
Raw material →Cutting →Heating → Water quenching → Tempering
2) Auto Hot Rolling
Raw material →Hot Rolling Mill → Water Quenching → Tempering
| Testing | Jinan Zhongwei established in 2000, leading manufacturer and exporter of grinding balls in China |
| Production Capacity | Annual output is 50000 tons to 80000 tons |
| Breakage Guarantee | ≤0.5-1.0% |
| Impact | >12 |
| Exported Countries | 20 more countries including UAE, Zambia, South Africa, Peru, Chile, Australia, UK, USD, Turkey |
| Wear Resistance | Better than cast ball with longer service life |
| Impact Toughness | >12 joules |
| Surface Quality | Smooth surface without pouring mouth, sand hole, and ring band |
| Breakage Rate | <0.5% |
| Product Name | Ball Mill Grinding Media Ball 20-180mm Forged Steel Ball For Mining Grinding Cement |
ZW Forged Grinding Ball, with model numbers 45#, 60Mn B2, B3, B6, is certified with ISO9001:2008 and originates from Jinan city, Shandong province, China. The product has a minimum order quantity of 25 tons, and the price is negotiable based on the order quantity. With an annual output of 50000 tons, the Forged Grinding Ball is supplied in container bags and steel drums with a delivery time of 1-3 weeks after the advance payment.
Main products : forged steel ball, cast iron ball ,grinding rod, cylpebs
We have exported to 20 more countries, UAE, Zambia,South Africa, Peru, Chile, Australia, UK, USA, Turkey and so on.
Quality control for each production shift (4hours/Shift);
Hardness, chemical elements and impact testing after production for each production shift;
SGS –third party testing before each delivery
Product Packaging:
Each Forged Grinding Ball is carefully packed in individual boxes to ensure safe transportation and handling. The boxes are labeled with product information and specifications for easy identification.
Shipping:
Our Forged Grinding Balls are shipped in sturdy cartons to protect them from damage during transit. We work with trusted shipping partners to ensure timely delivery to our customers.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit for the order?
A: 1ton MOQ.
Q3. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
