| Place of Origin: | Zhangqiu,Jinan city,Shandong province,China |
| Brand Name: | ZW( Jinan Zhongwei ) |
| Certification: | ISO9001:2008 |
| Model Number: | forged ball,cast ball, cylpebs |
| Minimum Order Quantity: | 10 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | container bags ,steel drum |
| Delivery Time: | 1-3 weeks after the advance |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | Annual output 50000 tons |
| Heat Treatment: | Water Quenching | Production Process: | Forging, Casting, Hot Rolling |
|---|---|---|---|
| Manufacturer: | Jinan Zhongwei | Leading Time: | According To The Contract |
| Tecnology: | Forged, Casting And Hot Rolling | Key Word: | Ball Mill Balls |
| Size: | 20-160mm | Endurance Test Times: | ≥10000 |
| Highlight: | 100 mm Grinding Medium Balls,180 mm Grinding Medium Balls,20 mm Grinding Medium Balls |
||

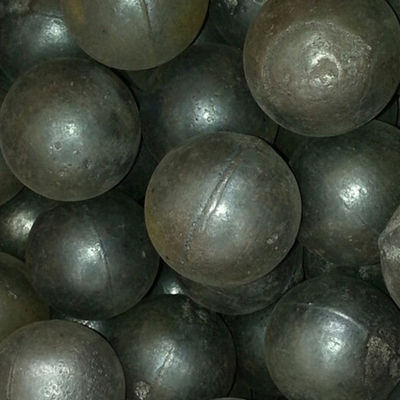

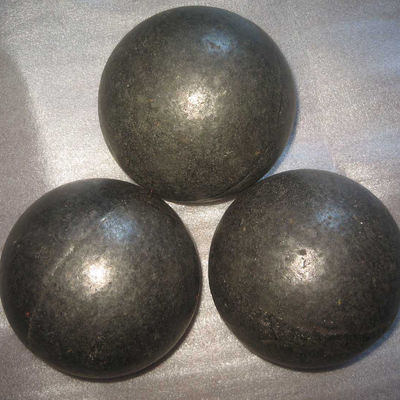

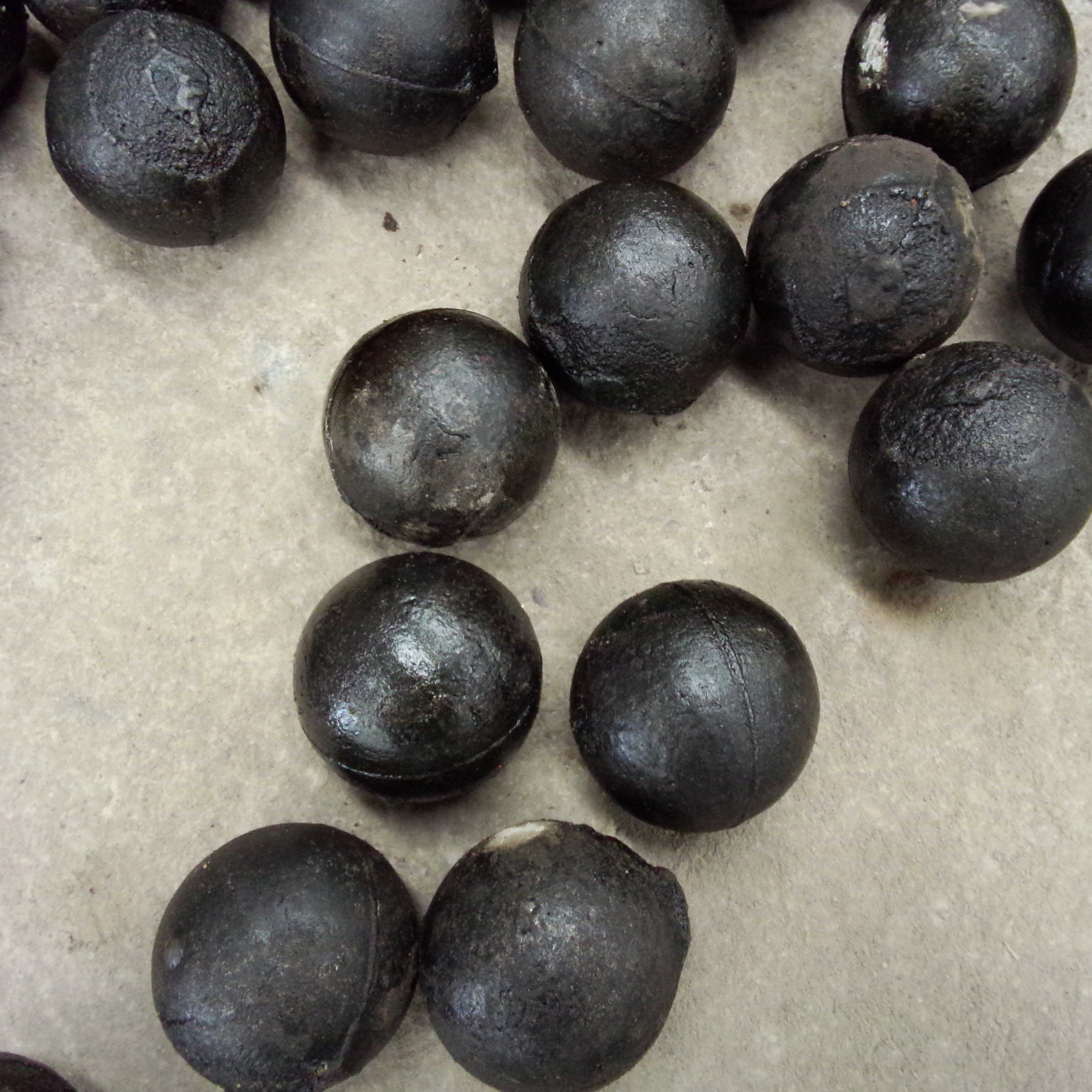

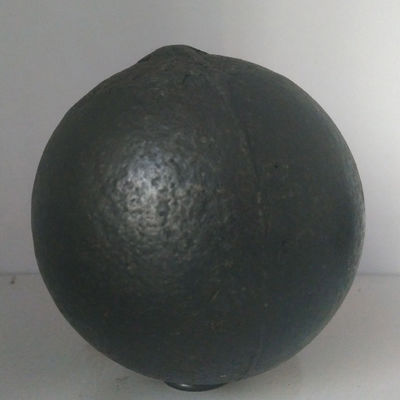

Forged steel grinding medium balls for ball mills (size: 12 mm 20 mm 50 mm 100 mm 180 mm)
The Forged Grinding Ball is a high-quality product designed for various grinding applications in industries such as mining, cement plants, power stations, and chemical industries. Known by various names such as Grinding Steel Ball, Forged Iron Ball, and Hot Rolled Grinding Ball, this product offers exceptional performance and durability.
| Material | Chemical Elements | |||||
| C | Si | Mn | P/S | Cr | Hardness (HRC) | |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | <0.035 | <0.25 | 60-65 |
| 60MN | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | <0.04 | <0.25 | 58-63 |
| B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | <0.04 | 0.4-0.6 | 55-58 |
| B3 | 0.58-0.66 | 1.3-1.9 | 0.65-0.8 | <0.025 | 0.7-0.9 |
56-65 |
| B6 | 0.97-1.03 | 0.2-0.3 | 1.0-1.1 | <0.025 | 0.5-0.6 | 61-65 |
|
Material
|
25mm-50mm HRC |
60mm-90mm HRC |
100mm-125mm HRC
|
130-150mm HRC |
||||
| Surface | Core | Surface | Core | Surface | Core | Surface | Core | |
| C45 | 55-58 | 55-58 | 50-68 | 23-30 | 48-52 | 22-26 | 48-52 | 22-25 |
| 60Mn | 58-62 | 55-60 | 58-62 | 30-36 | 57-61 | 26-32 | 57-61 | 26-30 |
| B2 | 60-64 | 58-64 | 57-64 | 45-60 | 55-60 | 38-48 | 55-60 | 38-42 |
| B3 | 62-65 | 60-65 | 60-65 | 58-65 | 56-65 | 50-62 | 56-63 | 50-55 |
| B6 | 62-65 | 60-65 | 61-65 | 58-65 | 60-63 | 50-62 | 61-63 | 50-55 |

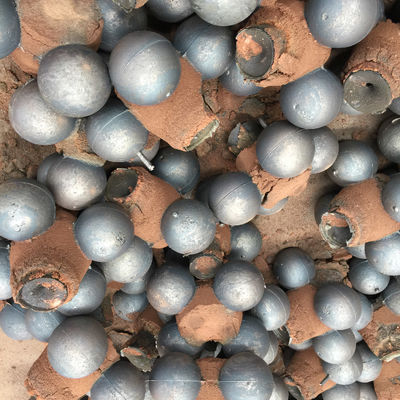

1) Traditional Forged
Raw material →Cutting →Heating → Water quenching → Tempering
2) Auto Hot Rolling
Raw material →Hot Rolling Mill → Water Quenching → Tempering
| Testing | Jinan Zhongwei established in 2000, leading manufacturer and exporter of grinding balls in China |
| Production Capacity | Annual output is 50000 tons to 80000 tons |
| Breakage Guarantee | ≤0.5-1.0% |
| Impact | >12 |
| Exported Countries | 20 more countries including UAE, Zambia, South Africa, Peru, Chile, Australia, UK, USD, Turkey |
| Wear Resistance | Better than cast ball with longer service life |
| Impact Toughness | >12 joules |
| Surface Quality | Smooth surface without pouring mouth, sand hole, and ring band |
| Breakage Rate | <0.5% |
| Product Name | Customized Forged Steel Grinding Ball 30mm-150mm Ball Mill Bearing Balls for Mine Cement Power Industries |
Our Product Technical Support and Services for Forged Grinding Ball include:
- Expert guidance on selecting the appropriate grinding ball for your specific needs.
- Assistance with installation and maintenance to ensure optimal performance.
- Troubleshooting support to address any issues that may arise during use.
- Training programs to help customers maximize the efficiency and lifespan of the grinding balls.
- Regular updates on new developments and innovations in the field of grinding ball technology.
Quality control for each production shift (4hours/Shift);
Hardness, chemical elements and impact testing after production for each production shift;
SGS –third party testing before each delivery
Product Packaging:
Each Forged Grinding Ball is carefully packed in individual boxes to ensure safe transportation and handling. The boxes are labeled with product information and specifications for easy identification.
Shipping:
Our Forged Grinding Balls are shipped in sturdy cartons to protect them from damage during transit. We work with trusted shipping partners to ensure timely delivery to our customers.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit for the order?
A: 1ton MOQ.
Q3. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
