| Place of Origin: | Jinan city,Shandong province,China |
| Brand Name: | ZW |
| Certification: | ISO9001:2008 |
| Model Number: | forged ball,grinding media ball |
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiable |

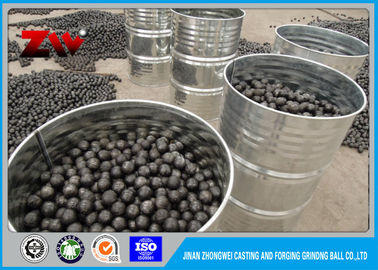

| Packaging Details: | container bags ,steel drum |
| Delivery Time: | 3 days after order confirmation |
| Supply Ability: | Annual output 80000 tons |
| Dropping Test: | >12000 | Vairiety Size: | Dia.20mm To 150mm |
|---|---|---|---|
| Diameter Tolerance: | ±2mm | Breakage Rate: | ≤1% |
| Hs Code: | 73261100 | Feature: | Wear Resistance, Corrosion Resistance |
| Producti Name: | High Hardness Grinding Media Casting Steel Balls Forged Grinding Ball For Mining And Cement Plant Low Chrome | Surface Hardness: | 58-65HRC |
| Highlight: | Cement Plant Grinding Media Balls,Mining Grinding Media Balls,Low Chrome Grinding Media Balls |
||
1) No deformation
2) High hardness Good wear resistant
3) Size:Dia12mm-150mm
4) Breakage<1%
5) Certification: ISO9001,SGS.
Forged Ball Details:
The Forged Grinding Ball product, known as High Quality China Factory Iron 40mm 50mm 60mm Forged Steel Grinding Balls, is a top-quality product designed to meet the needs of various industries. With a focus on delivering superior performance and durability, these Forged Carbon Balls are an excellent choice for grinding applications.
| Material | Chemical Elements | |||||
| C | Si | Mn | P/S | Cr | Hardness (HRC) | |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | <0.035 | <0.25 | 60-65 |
| 60MN | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | <0.04 | <0.25 | 58-63 |
| B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | <0.04 | 0.4-0.6 | 55-58 |
| B3 | 0.58-0.66 | 1.3-1.9 | 0.65-0.8 | <0.025 | 0.7-0.9 |
56-65 |
| B6 | 0.97-1.03 | 0.2-0.3 | 1.0-1.1 | <0.025 | 0.5-0.6 | 61-65 |
|
Material
|
25mm-50mm HRC |
60mm-90mm HRC |
100mm-125mm HRC
|
130-150mm HRC |
||||
| Surface | Core | Surface | Core | Surface | Core | Surface | Core | |
| C45 | 55-58 | 55-58 | 50-68 | 23-30 | 48-52 | 22-26 | 48-52 | 22-25 |
| 60Mn | 58-62 | 55-60 | 58-62 | 30-36 | 57-61 | 26-32 | 57-61 | 26-30 |
| B2 | 60-64 | 58-64 | 57-64 | 45-60 | 55-60 | 38-48 | 55-60 | 38-42 |
| B3 | 62-65 | 60-65 | 60-65 | 58-65 | 56-65 | 50-62 | 56-63 | 50-55 |
| B6 | 62-65 | 60-65 | 61-65 | 58-65 | 60-63 | 50-62 | 61-63 | 50-55 |
Casting Ball
1) Traditional Forged
Raw material →Cutting →Heating → Water quenching → Tempering
2) Auto Hot Rolling
Raw material →Hot Rolling Mill → Water Quenching → Tempering
3) Casting
Raw material preparation →Smelting→ Pouring→Cooling and demoulding→Heat treatment and inspection
Testing standards and items include hardness testing, appearance testing, wear resistance testing, tolerance testing, roundness testing, quality testing, composition testing, material testing, metal grade identification, chromium content testing, impact resistance testing, non-destructive testing, etc.
Testing equipment and tools include hardness tester, optical microscope, roundness tester, diameter measuring instrument, chemical analyzer, tensile testing machine, fatigue testing machine, surface roughness tester, X-ray diffractometer, coating thickness gauge, density meter, impact resistance testing machine, conductivity test, etc.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit for the order?
A: 1ton MOQ.
Q3. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
