| Place of Origin: | Jinan city,Shandong province,China |
| Brand Name: | ZW |
| Certification: | ISO9001:2008 |
| Model Number: | forged ball,grinding media ball |
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | Negotiable |

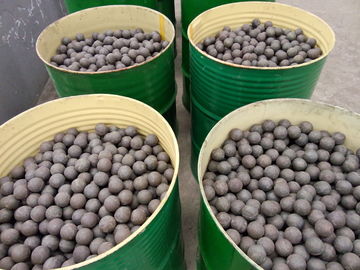

| Packaging Details: | container bags ,steel drum |
| Delivery Time: | 3 days after order confirmation |
| Supply Ability: | Annual output 80000 tons |
| Hsc: | 73261100 | Diameter: | 20-150mm |
|---|---|---|---|
| Key Word: | Grinding Media Ball | Packing Terms: | Container Bags Or Steel Drums |
| Surface Hardness: | Surface Hardness Of 55-65HRC | Impact Value: | ≥12J/cm² |
| Falling Ball Impact Test: | ≥10000 Times | Application: | Cement, Mining, Power Plant, Chemical Industry |
| Highlight: | 12mm Grinding Media Ball,Ball Mill Grinding Media Ball,180mm Grinding Media Ball |
||
Forged Ball Details:
| Material | Chemical Elements | |||||
| C | Si | Mn | P/S | Cr | Hardness (HRC) | |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | <0.035 | <0.25 | 60-65 |
| 60MN | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | <0.04 | <0.25 | 58-63 |
| B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | <0.04 | 0.4-0.6 | 55-58 |
| B3 | 0.58-0.66 | 1.3-1.9 | 0.65-0.8 | <0.025 | 0.7-0.9 |
56-65 |
| B6 | 0.97-1.03 | 0.2-0.3 | 1.0-1.1 | <0.025 | 0.5-0.6 | 61-65 |
|
Material
|
25mm-50mm HRC |
60mm-90mm HRC |
100mm-125mm HRC
|
130-150mm HRC |
||||
| Surface | Core | Surface | Core | Surface | Core | Surface | Core | |
| C45 | 55-58 | 55-58 | 50-68 | 23-30 | 48-52 | 22-26 | 48-52 | 22-25 |
| 60Mn | 58-62 | 55-60 | 58-62 | 30-36 | 57-61 | 26-32 | 57-61 | 26-30 |
| B2 | 60-64 | 58-64 | 57-64 | 45-60 | 55-60 | 38-48 | 55-60 | 38-42 |
| B3 | 62-65 | 60-65 | 60-65 | 58-65 | 56-65 | 50-62 | 56-63 | 50-55 |
| B6 | 62-65 | 60-65 | 61-65 | 58-65 | 60-63 | 50-62 | 61-63 | 50-55 |
Casting Ball
1) Traditional Forged
Raw material →Cutting →Heating → Water quenching → Tempering
2) Auto Hot Rolling
Raw material →Hot Rolling Mill → Water Quenching → Tempering
3) Casting
Raw material preparation →Smelting→ Pouring→Cooling and demoulding→Heat treatment and inspection
Size and weight detection: Use precise measuring instruments such as calipers and micrometers to measure the diameter, roundness, weight and other indicators of the steel ball and compare them with the standard values. If there is a large deviation, it means that there is a problem with the size and weight of the steel ball.
Hardness test
Chemical composition analysis
Metallurgical structure analysis
Physical property test
Wear resistance test
Fatigue test
Testing standards and items include hardness testing, appearance testing, wear resistance testing, tolerance testing, roundness testing, quality testing, composition testing, material testing, metal grade identification, chromium content testing, impact resistance testing, non-destructive testing, etc.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit for the order?
A: 1ton MOQ.
Q3. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
