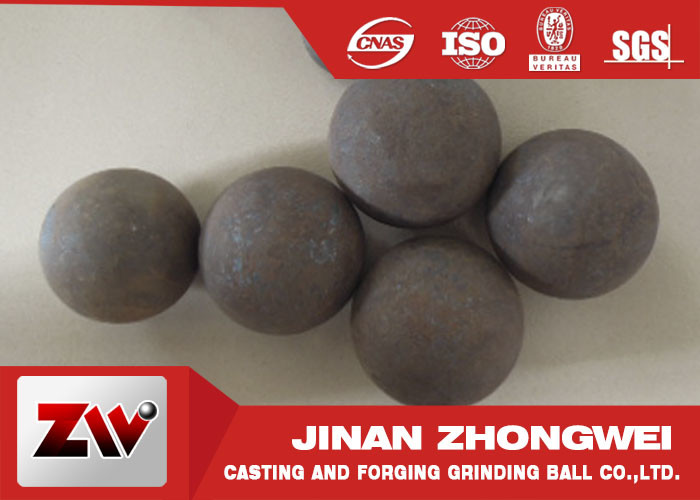

High Chrome Media Grinding Balls 50mm 75 mm 120mm Grinding Steel Ball for Ball Mill Mine Cement

Product Details:

Place of Origin:	Jinan city,Shandong province,China
Brand Name:	ZW
Certification:	ISO9001:2008
Model Number:	forged ball,grinding media ball

Payment & Shipping Terms:

Minimum Order Quantity:	1 tons
Price:	Negotiable
Packaging Details:	container bags ,steel drum
Delivery Time:	3 days after order confirmation
Supply Ability:	Annual output 80000 tons

Contact Now

Detailed Product Description

Produce Diameter:	20-150mm	Impact Value:	≥12 J/c㎡
Port:	Qingdao	Packing:	In Steel Drums Or Big Bags
Falling Impact:	﹥20,000 Times	Hs Code:	7326110000
Highlight:	120mm Grinding Steel Ball , High Chrome Grinding Balls , 120mm Grinding Balls

High Chrome Media Grinding Balls 50mm 75 mm 120mm Grinding Steel Ball for Ball Mill Mine Cement

Name: High Chrome Media Grinding Balls 50mm 75 mm 120mm Grinding Steel Ball for Ball Mill Mine Cement
Brand: Jinan Zhongwei Casting And Forging Grinding Ball Co.,Ltd
SKU: forged ball,grinding media ball
Price: 725.00 USD
Availability: InStock

Introduction

Grinding steel balls‌ are a main tool for grinding materials, usually used in ball mills. Grinding steel balls produce abrasive effects through collision and friction with materials, thereby achieving the grinding effect of materials

Forged Ball Details:

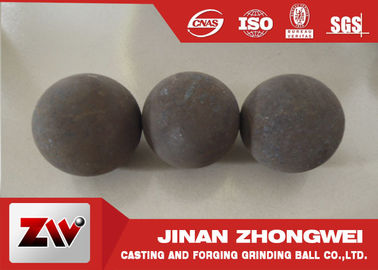

High Chrome Media Grinding Balls 50mm 75 mm 120mm Grinding Steel Ball for Ball Mill Mine Cement 0

Material	Chemical Elements
Material	C	Si	Mn	P/S	Cr	Hardness (HRC)
45#	0.42-0.50	0.17-0.37	0.5-0.8	<0.035	<0.25	60-65
60MN	0.55-0.65	0.17-0.37	0.7-1.0	<0.04	<0.25	58-63
B2	0.72-0.85	0.17-0.37	0.7-1.0	<0.04	0.4-0.6	55-58
B3	0.58-0.66	1.3-1.9	0.65-0.8	<0.025	0.7-0.9	56-65
B6	0.97-1.03	0.2-0.3	1.0-1.1	<0.025	0.5-0.6	61-65

Material	25mm-50mm HRC		60mm-90mm HRC		100mm-125mm HRC		130-150mm HRC
Material	Surface	Core	Surface	Core	Surface	Core	Surface	Core
C45	55-58	55-58	50-68	23-30	48-52	22-26	48-52	22-25
60Mn	58-62	55-60	58-62	30-36	57-61	26-32	57-61	26-30
B2	60-64	58-64	57-64	45-60	55-60	38-48	55-60	38-42
B3	62-65	60-65	60-65	58-65	56-65	50-62	56-63	50-55
B6	62-65	60-65	61-65	58-65	60-63	50-62	61-63	50-55

Casting Ball

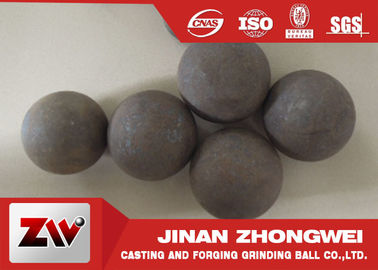

High Chrome Media Grinding Balls 50mm 75 mm 120mm Grinding Steel Ball for Ball Mill Mine Cement 1

Production Line

1) Traditional Forged

Raw material →Cutting →Heating → Water quenching → Tempering

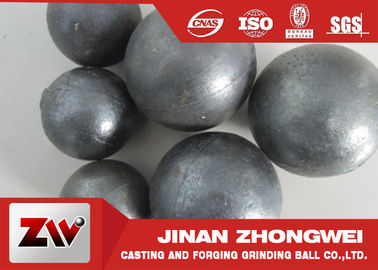

High Chrome Media Grinding Balls 50mm 75 mm 120mm Grinding Steel Ball for Ball Mill Mine Cement 4

2) Auto Hot Rolling

Raw material →Hot Rolling Mill → Water Quenching → Tempering

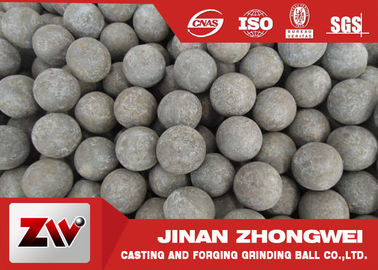

High Chrome Media Grinding Balls 50mm 75 mm 120mm Grinding Steel Ball for Ball Mill Mine Cement 5

3) Casting
Raw material preparation →Smelting→ Pouring→Cooling and demoulding→Heat treatment and inspection

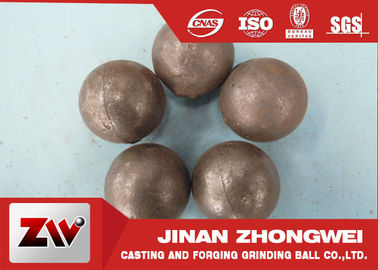

High Chrome Media Grinding Balls 50mm 75 mm 120mm Grinding Steel Ball for Ball Mill Mine Cement 6

Test

Packing & Shipping

Steel drum (800-950kg per drum)

Container Bag (1000kg per bag)

Two drums with Pallet

Company Profile

Jinan Zhongwei established in 2000 , we are a leading manufacturer and professional exporter grinding balls in China.

Our company covers an area of 15000 square meters, now we have 150 staff, including 13 technical staff. Annual output is 50000 tons to 80000 tons .

Main products : forged steel ball, cast iron ball ,grinding rod, cylpebs
We have exported to 20 more countries, UAE, Zambia,South Africa, Peru, Chile, Australia, UK, USA, Turkey and so on.

Question and Answer

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2. Do you have any MOQ limit for the order?
A: 1ton MOQ.

Q3. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
