| Place of Origin: | Jinan city,Shandong province,China |
| Brand Name: | ZW |
| Certification: | ISO9001:2008 |
| Model Number: | Hot Rolling Ball |
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | USD 550-680/Ton |
| Packaging Details: | container bags ,steel drum |
| Delivery Time: | 20 days after order confirmation |
| Supply Ability: | Annual output 80000 tons |
| Standard: | ASTM|EN|GB|DIN|JIS|AISI | Impact Toughness: | ≥12 J/cm2 |
|---|---|---|---|
| Chemical Elements: | C Si Mn P S Cr | Por Of Loading: | Qingdao Port,china |
| Product Name: | Low Breakage Rate Dia 20mm-150mm Forged Steel Grinding Ball For Mining | Key Word: | Hot Rolling Steel Ball |
| Delivery Condition: | Heat Treatment | Heat Treatment: | Water Quenching |
| Highlight: | Low Breakage rate Grinding Ball,Mining Grinding Ball |
||

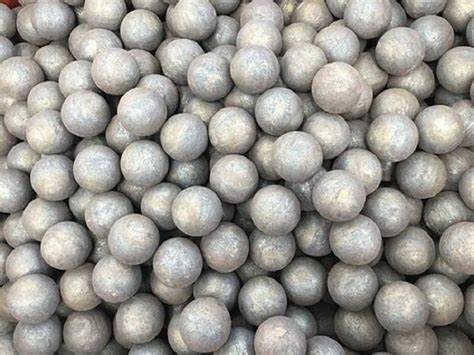

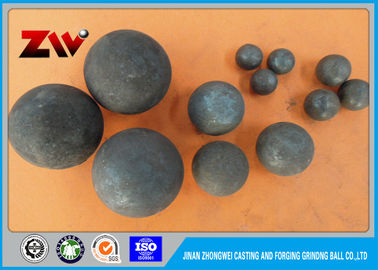

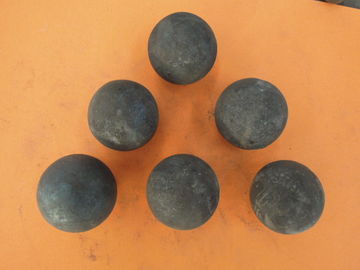

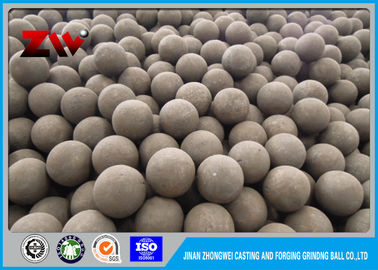

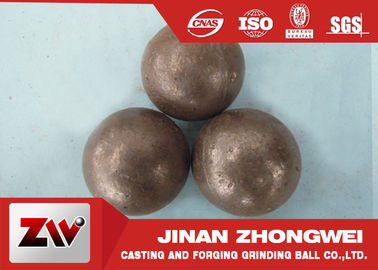

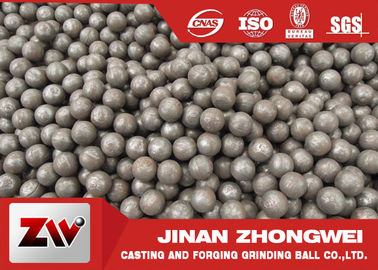

Low Breakage rate Dia 20mm-150mm Forged Steel Grinding Ball for Mining
Hot-rolled steel balls are high-quality grinding balls manufactured through rolling technology. Hot-rolled steel balls are formed by heating round steel bars in a continuous heating furnace and then sending them to a steel ball rolling mill for rolling. After rolling, the red-hot steel balls immediately enter the heat treatment equipment for quenching and tempering to ensure that they have a high and uniform hardness. Finally, the qualified products will be sent to the finished product warehouse for packaging and shipped to customers.
Hot-rolled steel ball is a kind of ball milling ball using a new rolling process technology.
Size: 20-150mm
Origin: Shandong, China
| Material | Chemical Elements | |||||
| C | Si | Mn | P/S | Cr | Hardness (HRC) | |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | <0.035 | <0.25 | 60-65 |
| 60MN | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | <0.04 | <0.25 | 58-63 |
| B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | <0.04 | 0.4-0.6 | 55-58 |
| B3 | 0.58-0.66 | 1.3-1.9 | 0.65-0.8 | <0.025 | 0.7-0.9 |
56-65 |
| B6 | 0.97-1.03 | 0.2-0.3 | 1.0-1.1 | <0.025 | 0.5-0.6 | 61-65 |
Hardness
|
Material
|
25mm-50mm HRC |
60mm-90mm HRC |
100mm-125mm HRC
|
130-150mm HRC |
||||
| Surface | Core | Surface | Core | Surface | Core | Surface | Core | |
| C45 | 55-58 | 55-58 | 50-68 | 23-30 | 48-52 | 22-26 | 48-52 | 22-25 |
| 60Mn | 58-62 | 55-60 | 58-62 | 30-36 | 57-61 | 26-32 | 57-61 | 26-30 |
| B2 | 60-64 | 58-64 | 57-64 | 45-60 | 55-60 | 38-48 | 55-60 | 38-42 |
| B3 | 62-65 | 60-65 | 60-65 | 58-65 | 56-65 | 50-62 | 56-63 | 50-55 |
| B6 | 62-65 | 60-65 | 61-65 | 58-65 | 60-63 | 50-62 | 61-63 | 50-55 |
Strict quality control of steel material from LAIWU STEEL FACTORY GROUP, the Biggest
factory group in North of China.
1.Traditional Hammer Forging:
Raw material-Cutting-Heating-Forging-Quenching-Tempering-Testing-Packing
2. Hot Rolling
Container bags(Net weight:1000KGS) or Steel drums(850-900KGS) or in clients' requirements
ISO9001-2008, SGS
Jinan Zhongwei established in 2000 , we are a leading manufacturer and professional exporter grinding balls in China.
Our company covers an area of 15000 square meters, now we have 150 staff, including 13 technical staff. Annual output is 50000 tons to 80000 tons .
Main products : forged steel ball, cast iron ball ,grinding rod, cylpebs
We have exported to 20 more countries, UAE, Zambia,South Africa, Peru, Chile, Australia, UK, USA, Turkey and so on.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit for the order?
A: 1ton MOQ.
Q3. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
