| Place of Origin: | Jinan city,Shandong province,China |
| Brand Name: | ZW |
| Certification: | ISO9001:2008 |
| Model Number: | Hot Rolling Ball |
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | USD 550-680/Ton |
| Packaging Details: | container bags ,steel drum |
| Delivery Time: | 20 days after order confirmation |
| Supply Ability: | Annual output 80000 tons |
| Technique: | Hot Rolled | Core Hardness: | HRC 55-60 |
|---|---|---|---|
| Vairiety Size: | Dia.20mm To 150mm | Origin: | China |
| Microstructure: | M+B+C | Customized Retail Package: | YES |
| Section Shape: | Round | Endurance Test Times: | ≥10000 |
| Highlight: | Hot Rolling Steel Grinding Ball,Mine Cement Grinding Ball |
||

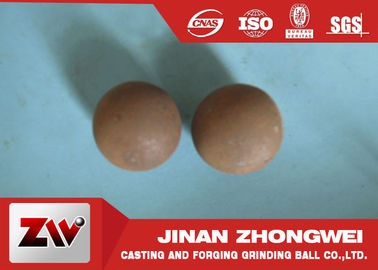

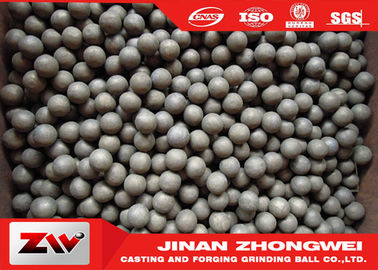

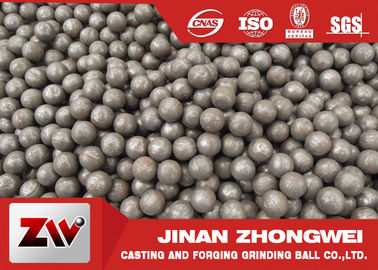

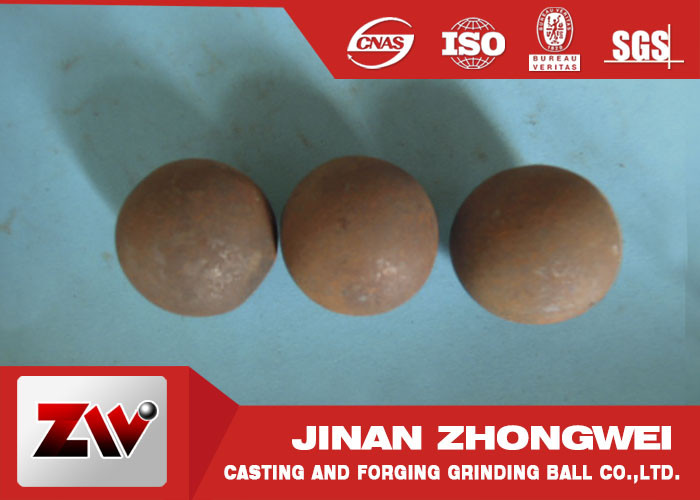

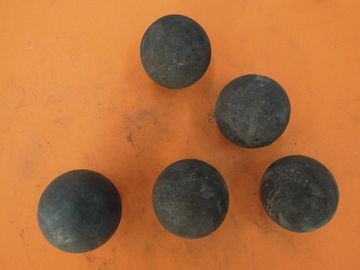

High Hardness Grinding Forged Hot Rolling Steel Grinding Ball for Mine Cement
Hot-rolled steel ball is a kind of ball milling ball using a new rolling process technology.
through rolling technology. Hot-rolled steel balls are formed by heating round steel bars in a continuous heating furnace and then sending them to a steel ball rolling mill for rolling. After rolling, the red-hot steel balls immediately enter the heat treatment equipment for quenching and tempering to ensure that they have a high and uniform hardness. Finally, the qualified products will be sent to the finished product warehouse for packaging and shipped to customers.
Size: 20-150mm
Origin: Shandong, China
| Material | Chemical Elements | |||||
| C | Si | Mn | P/S | Cr | Hardness (HRC) | |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | <0.035 | <0.25 | 60-65 |
| 60MN | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | <0.04 | <0.25 | 58-63 |
| B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | <0.04 | 0.4-0.6 | 55-58 |
| B3 | 0.58-0.66 | 1.3-1.9 | 0.65-0.8 | <0.025 | 0.7-0.9 |
56-65 |
| B6 | 0.97-1.03 | 0.2-0.3 | 1.0-1.1 | <0.025 | 0.5-0.6 | 61-65 |
Hardness
|
Material
|
25mm-50mm HRC |
60mm-90mm HRC |
100mm-125mm HRC
|
130-150mm HRC |
||||
| Surface | Core | Surface | Core | Surface | Core | Surface | Core | |
| C45 | 55-58 | 55-58 | 50-68 | 23-30 | 48-52 | 22-26 | 48-52 | 22-25 |
| 60Mn | 58-62 | 55-60 | 58-62 | 30-36 | 57-61 | 26-32 | 57-61 | 26-30 |
| B2 | 60-64 | 58-64 | 57-64 | 45-60 | 55-60 | 38-48 | 55-60 | 38-42 |
| B3 | 62-65 | 60-65 | 60-65 | 58-65 | 56-65 | 50-62 | 56-63 | 50-55 |
| B6 | 62-65 | 60-65 | 61-65 | 58-65 | 60-63 | 50-62 | 61-63 | 50-55 |

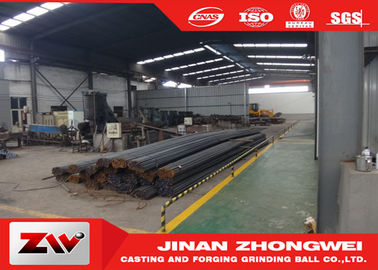

Strict quality control of steel material from LAIWU STEEL FACTORY GROUP, the Biggest
factory group in North of China.
1.Traditional Hammer Forging:
Raw material-Cutting-Heating-Forging-Quenching-Tempering-Testing-Packing
2. Hot Rolling
Container bags(Net weight:1000KGS) or Steel drums(850-900KGS) or in clients' requirements
Our company is located in Zhangqiu,Jinan City,Shandong Province, which is provided with superior geographical position and convenient transportation.
Application of our products: various mines,cement plants,power stations and chemical industries.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit for the order?
A: 1ton MOQ.
Q3. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Contact Person: Mrs. cherry lee
Tel: +8613793138983
Fax: Jinan Zhongwei Casting And Forgi
Address: Puji Street, Zhangqiu District, Jinan City, Shandong Province,China
Factory Address:Lejia,Puji Town,Zhangqiu Jinan city,Shandong Province,China
