| Place of Origin: | Jinan city,Shandong province,China |
| Brand Name: | ZW |
| Certification: | ISO9001:2008 |
| Model Number: | forged ball, grinding steel ball |
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | USD 550-680/Ton |
| Packaging Details: | container bags ,steel drum |
| Delivery Time: | 20 days after order confirmation |
| Supply Ability: | Annual output 80000 tons |
| Tecnology: | Forging And Rolling | Certification: | ISO9001:2008 |
|---|---|---|---|
| HS Code: | 73261100 | Breakage Rate: | <1% |
| Diameter: | 20mm To 180mm | Hardness Standard: | Hrc58 To 68 In Surface; Hrc56 To 65 |
| Packing Terms: | Container Bags Or Steel Drums | Applications: | Mines / Cement Plants |
| Highlight: | 130mm Hot Rolling Steel Balls,140mm Hot Rolling Steel Balls |
||
75mm 80mm 120 mm 130mm 140mm High Carbon Hot Rolling Steel Balls

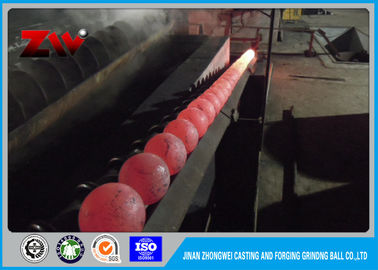

Through rolling technology. Hot-rolled steel balls are formed by heating round steel bars in a continuous heating furnace and then sending them to a steel ball rolling mill for rolling. After rolling, the red-hot steel balls immediately enter the heat treatment equipment for quenching and tempering to ensure that they have a high and uniform hardness. Finally, the qualified products will be sent to the finished product warehouse for packaging and shipped to customers.
Size: 20-150mm
Origin: Shandong, China
| Material | Chemical Elements | |||||
| C | Si | Mn | P/S | Cr | Hardness (HRC) | |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | <0.035 | <0.25 | 60-65 |
| 60MN | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | <0.04 | <0.25 | 58-63 |
| B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | <0.04 | 0.4-0.6 | 55-58 |
| B3 | 0.58-0.66 | 1.3-1.9 | 0.65-0.8 | <0.025 | 0.7-0.9 |
56-65 |
| B6 | 0.97-1.03 | 0.2-0.3 | 1.0-1.1 | <0.025 | 0.5-0.6 | 61-65 |
Hardness
|
Material
|
25mm-50mm HRC |
60mm-90mm HRC |
100mm-125mm HRC
|
130-150mm HRC |
||||
| Surface | Core | Surface | Core | Surface | Core | Surface | Core | |
| C45 | 55-58 | 55-58 | 50-68 | 23-30 | 48-52 | 22-26 | 48-52 | 22-25 |
| 60Mn | 58-62 | 55-60 | 58-62 | 30-36 | 57-61 | 26-32 | 57-61 | 26-30 |
| B2 | 60-64 | 58-64 | 57-64 | 45-60 | 55-60 | 38-48 | 55-60 | 38-42 |
| B3 | 62-65 | 60-65 | 60-65 | 58-65 | 56-65 | 50-62 | 56-63 | 50-55 |
| B6 | 62-65 | 60-65 | 61-65 | 58-65 | 60-63 | 50-62 | 61-63 | 50-55 |
Strict quality control of steel material from LAIWU STEEL FACTORY GROUP, the Biggest
factory group in North of China.

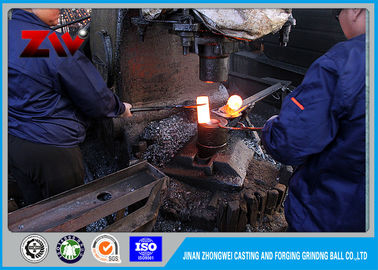

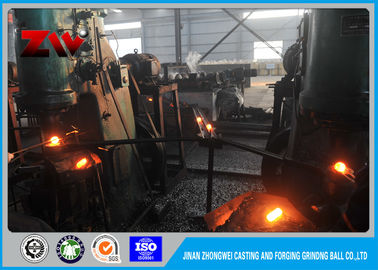

1.Traditional Hammer Forging:
Raw material-Cutting-Heating-Forging-Quenching-Tempering-Testing-Packing
2. Hot Rolling
Quality control for each production shift (4hours/Shift);
Hardness, chemical elements and impact testing after production for each production shift;
SGS –third party testing before each delivery
Container bags(Net weight:1000KGS) or Steel drums(850-900KGS) or in clients' requirements
ISO9001-2008, SGS
1. All of the grinding material can do the well-know and most professional in grinding media industry test certificate: ISO
2. All products are our own production, no other commissons expense. We guarantee to provide the best competitive price
3. Delivery on time, due to our production capacity: 100,000 tons/year
Our company is located in Zhangqiu ,Jinan City,Shandong Province, which is provided with superior geographical position and convenient transportation. Our company covers an area of 15,000 square meters,with two million registered capital .And there are 150 existing staff,including 21 technicians.
Our main products: forging grinding steel balls,and (high,low,medium) chrome alloyed casting iron balls,casting cylpebs,grinding rods.
Application of our products: various mines,cement plants,power stations and chemical industries.
Priorities of our products: High hardness, good wear resistance, breakage rate lower than 1%.
