| Place of Origin: | Shandong, China |
| Brand Name: | ZW |
| Certification: | ISO9001-2008, SGS, BV, TUV |
| Model Number: | B2, B3, 60Mn, C45, and chrome ball |
| Minimum Order Quantity: | 1Tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 ton in bag or 900kgs in steel barrel |
| Delivery Time: | 3-5 days |
| Supply Ability: | 4000 Tons per month |
| Material: | B2, 60Mn, C45,B3 | Size: | Dia 20-140mm |
|---|---|---|---|
| Hardness: | 45-65HRC | Packing: | Bag Or Steel Drum |
| Broken Rate: | ＜0.5% | Inspection: | SGS,BV, TUV |
| Dimensions: | Customer Required,Dia.20mm-140mm | Product Name: | Grinding Steel Balls |

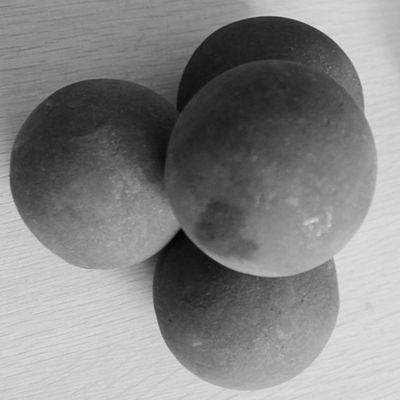

Direct Sale Grinding Steel Balls with High Hardness and Low Breakage Rate
High Chrome Steel Grinding Media Balls is used in mining where they are used to extract precious metals in ore mineral processing. Since ore particles must go through the grinding process, steel grinding media are ideal for such a grinding process. Steel ball grinding media are made from alloys of iron and carbon. By increasing the carbon content to produce cast irons, both the hardness and wear resistance are improved significantly.
| Material | Chemical Elements | |||||
| C | Si | Mn | P/S | Cr | Hardness (HRC) | |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | <0.035 | <0.25 | 60-65 |
| 60MN | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | <0.04 | <0.25 | 58-63 |
| B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | <0.04 | 0.4-0.6 | 55-58 |
| B3 | 0.58-0.66 | 1.3-1.9 | 0.65-0.8 | <0.025 | 0.7-0.9 |
56-65 |
| B6 | 0.97-1.03 | 0.2-0.3 | 1.0-1.1 | <0.025 | 0.5-0.6 | 61-65 |
Hardness
|
Material
|
25mm-50mm HRC |
60mm-90mm HRC |
100mm-125mm HRC
|
130-150mm HRC |
||||
| Surface | Core | Surface | Core | Surface | Core | Surface | Core | |
| C45 | 55-58 | 55-58 | 50-68 | 23-30 | 48-52 | 22-26 | 48-52 | 22-25 |
| 60Mn | 58-62 | 55-60 | 58-62 | 30-36 | 57-61 | 26-32 | 57-61 | 26-30 |
| B2 | 60-64 | 58-64 | 57-64 | 45-60 | 55-60 | 38-48 | 55-60 | 38-42 |
| B3 | 62-65 | 60-65 | 60-65 | 58-65 | 56-65 | 50-62 | 56-63 | 50-55 |
| B6 | 62-65 | 60-65 | 61-65 | 58-65 | 60-63 | 50-62 | 61-63 | 50-55 |
1) Traditional Forged
Raw material →Cutting →Heating → Water quenching → Tempering
1000kgs in a bag or 850-900kgs in a steel drum, then 25 tons in a 20GP Container
Jinan Zhongwei established in 2000 , we are a leading manufacturer and professional exporter grinding balls in China.
Our company covers an area of 15000 square meters, now we have 150 staff, including 13 technical staff. Annual output is 50000 tons to 80000 tons .
Main products : forged steel ball, cast iron ball ,grinding rod, cylpebs
We have exported to 20 more countries, UAE, Zambia,South Africa, Peru, Chile, Australia, UK, USA, Turkey and so on.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit for the order?
A: 1ton MOQ.
Q3. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
