| Place of Origin: | Jinan city,Shandong province,China |
| Brand Name: | ZW |
| Certification: | ISO9001:2008 |
| Model Number: | forged ball, grinding steel ball |
| Minimum Order Quantity: | 1 tons |
|---|---|
| Price: | USD 580-650/Ton |
| Packaging Details: | container bags ,steel drum |
| Delivery Time: | 3 days after order confirmation |
| Supply Ability: | Annual output 80000 tons |
| Product Name: | Widely Used Superior Quality Wear Resistance High Hardness Hot Rolling Steel Balls | Impact Test: | ≥12AK.j/cm^2 |
|---|---|---|---|
| Packing Terms: | Container Bags Or Steel Drums | Useage: | GRINDING MEDIA |
| Key Words: | Hot Rolling Grinding Balls | Dimension: | Custom |
| Inspection: | SGS, BV, TUV | Material Standard: | GB|ASTM|AISI|ASME|DIN|BS|EN|JIS |
Widely Used Superior Quality Wear Resistance High Hardness Forged Steel Ball
Size: 20-150mm
Origin: Shandong, China
| Material | Chemical Elements | |||||
| C | Si | Mn | P/S | Cr | Hardness (HRC) | |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | <0.035 | <0.25 | 60-65 |
| 60MN | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | <0.04 | <0.25 | 58-63 |
| B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | <0.04 | 0.4-0.6 | 55-58 |
| B3 | 0.58-0.66 | 1.3-1.9 | 0.65-0.8 | <0.025 | 0.7-0.9 |
56-65 |
| B6 | 0.97-1.03 | 0.2-0.3 | 1.0-1.1 | <0.025 | 0.5-0.6 | 61-65 |
Hardness
|
Material
|
25mm-50mm HRC |
60mm-90mm HRC |
100mm-125mm HRC
|
130-150mm HRC |
||||
| Surface | Core | Surface | Core | Surface | Core | Surface | Core | |
| C45 | 55-58 | 55-58 | 50-68 | 23-30 | 48-52 | 22-26 | 48-52 | 22-25 |
| 60Mn | 58-62 | 55-60 | 58-62 | 30-36 | 57-61 | 26-32 | 57-61 | 26-30 |
| B2 | 60-64 | 58-64 | 57-64 | 45-60 | 55-60 | 38-48 | 55-60 | 38-42 |
| B3 | 62-65 | 60-65 | 60-65 | 58-65 | 56-65 | 50-62 | 56-63 | 50-55 |
| B6 | 62-65 | 60-65 | 61-65 | 58-65 | 60-63 | 50-62 | 61-63 | 50-55 |
Strict quality control of steel material from LAIWU STEEL FACTORY GROUP, the Biggest
factory group in North of China.

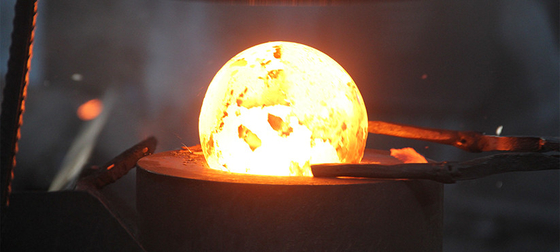

1.Traditional Hammer Forging:
Raw material-Cutting-Heating-Forging-Quenching-Tempering-Testing-Packing
2. Hot Rolling
Quality control for each production shift (4hours/Shift);
Hardness, chemical elements and impact testing after production for each production shift;
SGS –third party testing before each delivery
Container bags(Net weight:1000KGS) or Steel drums(850-900KGS) or in clients' requirements
ISO9001-2008, SGS
Our advantage:
1. All of the grinding material can do the well-know and most professional in grinding media industry test certificate: ISO
2. All products are our own production, no other commissons expense. We guarantee to provide the best competitive price
3. Delivery on time, due to our production capacity: 100,000 tons/year
We, Jinan Zhongwei, are manufacturer and exporter of grinding balls in China,with the annual output of 50,000 to 70,000 metric tons.
Our company is located in Zhangqiu ,Jinan City,Shandong Province, which is provided with superior geographical position and convenient transportation. Our company covers an area of 15,000 square meters,with two million registered capital .And there are 150 existing staff,including 21 technicians.
Our main products: forging grinding steel balls,and (high,low,medium) chrome alloyed casting iron balls,casting cylpebs,grinding rods.
Application of our products: various mines,cement plants,power stations and chemical industries.
Priorities of our products: High hardness, good wear resistance, breakage rate lower than 1%.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. Do you have any MOQ limit for the order?
A: 1ton MOQ.
Q3. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
