No Breakage Grinding Steel Balls for mining and Cement / steel mill media

No Breakage Grinding Steel Balls for mining and Cement / steel mill media

  • No Breakage Grinding Steel Balls for mining and Cement / steel mill media
  • No Breakage Grinding Steel Balls for mining and Cement / steel mill media
  • No Breakage Grinding Steel Balls for mining and Cement / steel mill media
  • No Breakage Grinding Steel Balls for mining and Cement / steel mill media
No Breakage Grinding Steel Balls for mining and Cement / steel mill media
Product Details:
Place of Origin: Jinan
Brand Name: ZW
Certification: ISO9001 SGS
Model Number: 45# 60Mn B2 B3,high medium low chrome
Payment & Shipping Terms:
Minimum Order Quantity: 1 tonne
Price: Negotiable
Packaging Details: Steel drums,container bags
Delivery Time: 5-7 days
Supply Ability: 50000 Tonne per year
Contact Now
Detailed Product Description
Product: Grinding Steel Balls Material: Iron And Steel Rod
Size: Dia20-150mm Hardness: 55-65HRC
Packing: Bag Or Steel Drums Certification: SGS, BV, TUV, ISO9001
Application: Cement Plant, Power Station, Mine, Chemical Industry Technical: Forged, Hot Rolling, Cast
High Light:

grinding media steel ball

,

forged grinding steel ball

cement plant use low price forged and low chrome cast grinding steel balls




Advantage

1. Jinan Zhongwei has 16 years production and exporting experience.

2.We keep continuous adjustment and improvement in production according to the customer’s requirement at the last 10 years.

3.On the basis of satisfied customer’s 50,000 tons/year demand, Jinan Zhongwei has more 30,000 - 50,000 tons/year production capacity for the new cooperative partner.

4.Stable price system - 12 months price validity

5.Payment terms ( Negotiate)



Type and chemical composition of forged balls


Name

Material

Chemical composition

Hardness
C Si Mn S P Cr HRC




forged ball
B3 0.58-0.66 1.6-1.9 0.65-0.8 <0.025 <0.025 0.7-0.9 58-63
B2 0.72-0.85 0.17-0.37 0.7-1.0 <0.04 <0.04 0.4-0.6 58-63
60Mn 0.55-0.65 0.17-0.37 0.7-1.0 <0.04 <0.04 <0.25 58-62
45# 0.42-0.50 0.17-0.37 0.5-0.8 <0.035 <0.035 ≤0.25 50-55




Hardness distribution


Material
Dia25mm-Dia50mm

Dia60mm-Dia90mm

Dia90mm-Dia125mm


surface

core

surface

core

surface

core
B3 / / / / 56-63 45-53
B2 60-65 58-62 58-63 50-55 56-60 40-45
60Mn 58-63 55-60 58-63 40-45 56-60 30-35
45# 55-58 45-55 55-58 30-35 50-55 25-30



Type and chemical composition of cast iron balls


Name

Material

Chemical composition

Hardness
C Si Mn S P Cr HRC




Cast ball

Special Hi-Cr
2.0-3.0 <1.0 0.5-2.0 ≤0.06 ≤0.08 >20 58-64

Special Hi-Cr
2.0-3.0 <1.0 0.5-2.0 ≤0.06 ≤0.08 >15 58-64

High-Cr
2.0-3.2 <1.0 0.5-2.5 ≤0.06 ≤0.08 >10 58-62

Medium-Cr
2.0-3.2 <1.0 0.5-2.5 ≤0.06 ≤0.08 ≥5 50-55

Low-Cr
2.2-3.4 ≤1.2 0.5-1.5 ≤0.06 ≤0.08 1.0-1.5 42-46



Hardness distribution


Material
Dia25mm-Dia50mm

Dia60mm-Dia70mm

Dia80mm-Dia90mm


surface

core

surface

core

surface

core

Special hi-CR:>20
60-64 59-63 60-64 58-62 60-64 57-61

Special hi-CR:>15
58-62 57-61 58-62 56-60 58-62 50-59

High Cr:>10
58-62 57-61 58-62 56-60 58-62 50-59

Medium Cr:≥5
50-55 49-54 50-55 48-53 50-55 47-52

Low Cr:1-1.5
42-46 41-45 42-46 40-44 42-46 39-43


No Breakage Grinding Steel Balls for mining and Cement / steel mill media 0


The production process of the forged grinding balls

1). Raw material:
All the material is qualified with certificate and made in the Chinese largest steel production enterprise.

2). Different steel specifications ccording to the clients's requirements.

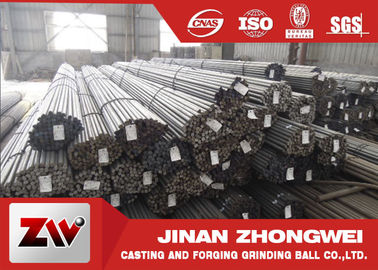

Main Steel Material :C45 Steel;60Mn Steel;B2 Steel

3). Steel Cutting:
the steel bars should be cut into small pieces according to the size of steel balls required by the order.

4). Heating:
we use the electric furnace instead of the traditional coal stove, the biggest advantage is that all the steel bars can accept the most approriate temperature during the heating progress. It affect the hardness and toughness directly.

5). Hammer forging:
The raw material is forged to a certain deformation by the air hammer, when the compression ratio increased, the micro-structure become more compact so that the hardness and the toughness can be improved.

6). Heat treatment:
Both the water quenching heat treatment production line and our own temperature control technics are important.
We have mature production technicians responsible for the heat treatment process as we know this process affect the grinding balls performance directly.

7). Quality Control.
Raw material test before production
Hardness test Drop Test Impact Test Core pulling Test after production
SGS test before delivery


No Breakage Grinding Steel Balls for mining and Cement / steel mill media 1


Packaging & Shipping

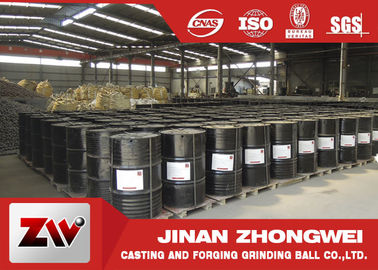

Packing: Container bags or steel drums or others.
For Container Bag, Net weight 1000Kgs ,Gross Weight 1002KGS ,Measurement 0.4CBM
For Steel Drums ,Net weight 850-950Kgs ,Gross Weight 865-965KGS ,Measurement 0.3CBM .

Shipping and delivery
Port of loading:Qingdao Port,China

Delivery time : Normally 2-3 weeks after down payment received.
Partial shippment allowed


FAQ
Payment terms : T/T (30% DP,balance against copy of B/L.; L/C
Samples : Free samples are provided for test before trial order
MOQ : 1 Ton


No Breakage Grinding Steel Balls for mining and Cement / steel mill media 2
Company Profile

Jinan Zhongwei Casting And Forging Grinding Ball Co.,LTd established in 2000, as a professional grinding media manufacturer, we are devote to development and production wear-resistant steel balls for ball mill. Main products: Forged Steel Ball, Cast Steel Ball (High, Medium, Low Chrome), Casting Cylpebs, Grinding Rods.

We have obtained ISO 9001:2008 International Quality System Authentication. To ensure the excellent performance of grinding balls, our company have advance quality control and test equipments, and complete quality inspection system.

Strength casting high quality goods and good faith forging magnificent. Our aim is to insist on the theory of "Quality first, Honesty and Trust Bring Mutual Benefits". We are trying best to supply customers from both at home and abroad with high quality products and satisfactory service.
