High Chrome Mining Grinding steel Balls With high Impact Resistance

High Chrome Mining Grinding steel Balls With high Impact Resistance

    • High Chrome Mining Grinding steel Balls With high Impact Resistance
    • High Chrome Mining Grinding steel Balls With high Impact Resistance
    • High Chrome Mining Grinding steel Balls With high Impact Resistance
    • High Chrome Mining Grinding steel Balls With high Impact Resistance
  • High Chrome Mining Grinding steel Balls With high Impact Resistance

    Product Details:

    Place of Origin: China
    Brand Name: ZW
    Certification: ISO9001:2008
    Model Number: 45#,60Mn B2,B3,B4,High Chrome,Low Chrome

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Ton
    Price: Negotiable
    Packaging Details: big bags ,steel drum
    Delivery Time: 10-20 days after order confirmation
    Payment Terms: Western Union, D/P, D/A, L/C, T/T
    Supply Ability: Annual output 50000 tons
    Contact Now
    Detailed Product Description
    Key Words: Grinding Steel Ball, Mill Ball,grinding Mdia Breakage Guarantee: 1% Max
    Surface Hardness: HRC 60-68 Production Line: Forging And Casting
    Heating Method: By Electric Furance Certification: ISO9001:2008
    Service: One-stop Service Quality Control: By Inner And The Third Party
    HS Code: 73261100
    High Light:

    forged grinding steel ball

    ,

    steel grinding balls

    Manufacturer : Jinan Zhongwei



    As a leading global manufacturer of grinding steel balls , we offer advanced, reasonable solutions for any size-reduction requirements including quarry, aggregate, and different kinds of grinding steel balls ,grinding rods, grinding cylpeb .

    Our Services

     We supply forged steel grinding steel balls with diamater 20mm-150mm.

    We supply casted iron grinding steel balls with diamater 20mm-150mm.

    We supply grinding rods made by C45 Steel ,60Mn Steel,B2 Steel,B3 Steel.

    We supply grinding cylpeb (Cylinder) with High Chrome,Low Chrome,Medium Chrome

    Advantages of Jinan Zhongwei Grinding Steel Balls

    1.Electric Furnace as compared to coal
    2.Fair Market Price
    3.Quality guarantee
    4.On time delivery



    Type and Chemical Composition of Forged grinding media Ball

    Name

    Material

    C

    Mn

    Si

    Cr

    S

    P

    ZW-1

    50Mn

    0.48-0.56

    0.70-1.0

    0.17-0.37

    ≤0.25

    ≤0.035

    ≤0.035

    ZW-2

    60Mn

    0.57-0.65

    0.70-1.0

    0.17-0.37

    ≤0.25

    ≤0.035

    ≤0.035

    ZW-3

    65Mn

    0.60-0.70

    0.90-1.2

    0.17-0.37

    ≤0.25

    ≤0.035

    ≤0.035

    ZW-4

    B2

    0.70-0.85

    0.70-0.80

    0.17-0.37

    0.2-0.7

    ≤0.03

    ≤0.03

    ZW-5

    75SiMn

    0.70-0.90

    0.70-1.20

    0.4-0.8

    ≤0.25

    ≤0.03

    ≤0.03

    ZW-6

    Wear-resistant Alloy

    0.50-0.65

    0.4-1.0

    1.4-1.8

    0.9-1.2

    ≤0.03

    ≤0.03





    Physical Property of Forged steel grinding media Ball

    Name

    Material

    Impact Test(Ak.J/cm²)

    Endurance Test Times(5m/T)

    Surface Hardness

    (Φ25mm- Φ60mm)

    Core Hardness

    (Φ25mm- Φ60mm)

    Surface Hardness

    (Φ70mm- Φ100mm)

    Core Hardness

    (Φ70mm- Φ100mm)

    Breakage

    ZW-1

    50Mn

    ≥12

    ≥10000

    ≥56

    ≥35

    ≥56

    ≥28

    <1%

    ZW-2

    60Mn

    ≥13

    ≥10000

    ≥58

    ≥38

    ≥58

    ≥29

    <1%

    ZW-3

    65Mn

    ≥15

    ≥12000

    ≥60

    ≥42

    ≥60

    ≥30

    <1%

    ZW-4

    B2

    ≥17

    ≥12000

    ≥60

    ≥52

    ≥60

    ≥50

    <1%

    ZW-5

    75SiMn

    ≥16

    ≥12000

    ≥60

    ≥50

    ≥60

    ≥48

    <1%

    ZW-6

    Wear-resistant Alloy

    ≥17

    ≥12000

    ≥60

    ≥54

    ≥60

    ≥52

    <1%

    The production process of the forged grinding balls

    1). Raw material:

    All the material is qualified with certificate and made in the Chinese largest steel production enterprise.

    2). Different steel specifications ccording to the clients's requirements.

     Main Steel Material :C45 Steel;60Mn Steel;B2 Steel

    3). Steel Cutting:

    the steel bars should be cut into small pieces according to the size of steel balls required by the order.

    4). Heating:

    we use the electric furnace instead of the traditional coal stove, the biggest advantage is that all the steel bars can accept the most approriate temperature during the heating progress. It affect the hardness and toughness directly.

    5). Hammer forging:

    The raw material is forged to a certain deformation by the air hammer, when the compression ratio increased, the micro-structure become more compact so that the hardness and the toughness can be improved.

    6). Heat treatment:

    Both the water quenching heat treatment production line and our own temperature control technics are important.

    We have mature production technicians responsible for the heat treatment process as we know this process affect the grinding balls performance directly.

    7). Quality Control.

    Raw material test before production

    Hardness test  Drop Test  Impact Test Core pulling Test after production

    SGS test before delivery

    Certificate: ISO 9001:2008

    High Chrome Mining Grinding steel Balls With high Impact Resistance 0





     Type and Chemical Composition of Cast iron grinding media Ball



    NAME

    BRAND

    CHEMICAL COMPOSITION(%)

    C

    Si

    Mn

    Cr

    Mo

    P

    S

    High Chromium

    Cast Ball





    ZQCr26

    2.0-3.4

    ≤1.2

    ≤1.5

    22-28

    ≤1.5

    ≤0.10

    ≤0.10

    ZQCr20

    2.0-3.4

    ≤1.2

    ≤1.5

    17-22

    ≤1.5

    ≤0.10

    ≤0.10

    ZQCr17

    2.0-3.4

    ≤1.0

    ≤2.5

    15-17

    ≤1.5

    ≤0.10

    ≤0.10

    ZQCr13

    1.7-3.4

    ≤1.0

    ≤2.5

    11-14

    ≤1.5

    ≤0.10

    ≤0.10



     Physical Propertof Casting grinding media Ball

    MAME

    BRAND

    HARDNESS

    IMPACT VALUE

    ak(J/cm2)



    METALLOGRAPHIC

    ORGANIZATION



    BALLS

    FATIGUE LIFE

    QUENCHING STATE(A)

    NO- QUENCHING STATE(A)

    IMPACT

    High Chromium

    Casting Ball





    ZQCr26

    ≥60

    ≥45

    ≥4.0

    M+C

    ≥8000

    ZQCr20

    ≥60

    ≥45

    ≥3.5

    ≥8000

    ZQCr17

    ≥60

    ≥49

    ≥3.0

    ≥8000

    ZQCr13

    ≥60

    ≥50

    ≥2.3

    ≥8000

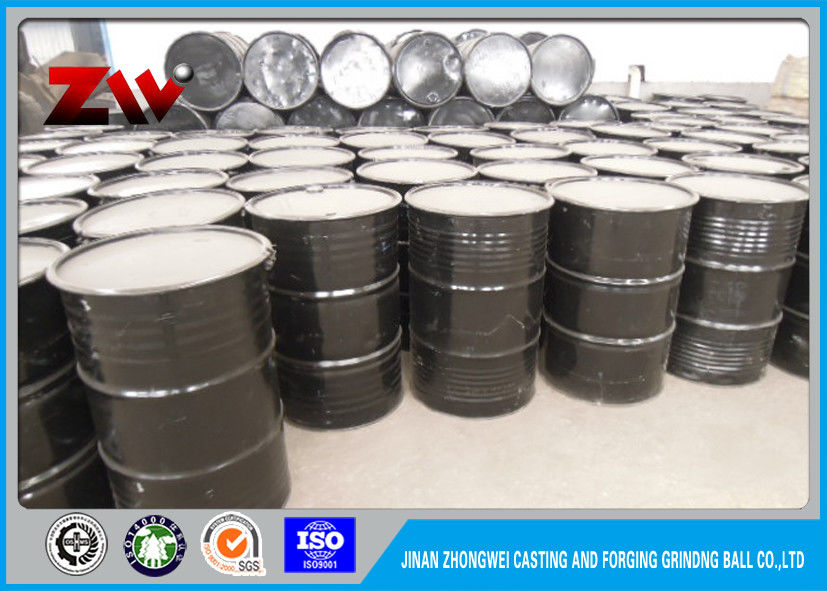

    Grinding Media Packaging

    Big bags (1000Kg Per Bag)

    Steel drums (850~920Kg Per Drum)

    High Chrome Mining Grinding steel Balls With high Impact Resistance 1





    Grinding Media Balls Applied Fields



    1. Mining

    2. Cement Plants

    3. Chemical Industries

    4. Power Stations


    Shipping and delivery



    Port of loading:Qingdao Port,China

    Delivery time : Normally 2-3 weeks after down payment received.

    Partial shippment allowed



    FAQ

    · Payment terms : T/T (30% DP,balance against copy of B/L.;  L/C

    · Samples :  Free samples are provided for test before trial order

    · MOQ : 1 Ton



    For more information about our products ,Pls feel free to contact us.
